汎翊國際目前配合的電感廠
於1988年在台灣新北市成立，專注於為全球市場的客戶銷售、研究和生產感測器、線圈和磁珠。
我們在台灣和中國擁有三個工廠和兩個實驗室，能夠持續滿足客戶的各種需求。

電感廠K以「真誠、務實」的精神為客戶提供最好的服務，同時與所有合作夥伴和員工建立長期互惠互利的關係。
我們擁有 30 多年專業製造電感器、線圈和磁珠的經驗，
通過了 ISO 9000、14001 和 TS 16949 認證，
產品應用於工業、汽車、通訊、消費、醫療保健、智慧家庭和電​​氣應用。

我們以具有競爭力的價格提供高品質的產品，並提供可靠且響應迅速的服務，以確保客戶滿意度。
憑藉全球永續供應鏈，我們很自豪能夠成為一家客戶成功公司，為全球客戶提供服務超過 30 年。



SMD Bead
Products classification		Photo	P/N	Series		Dimensions (mm)			Impedance at 100MHz	Rated Current
						L	W	H

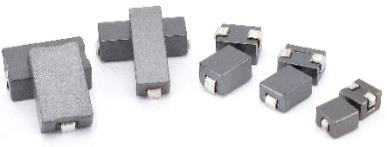

Ni-Zn Ferrite Bead (high current)			SMB	323023I		3.08 ~9.5	2.9 ~4.75	2.2 ~3.55	32~98Ω	>15A
				403022I
				403025
				853025
				784730

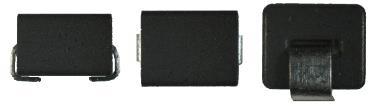

Metal Alloy Bead (Giga frequency)			SMBP	403025		4	3	2.6	63Ω/500MHz 100Ω/1GHz	>20A
Mn-Zn Ferrite Bead (high current)			SMBM	403022I		4.0 ~9.5	3.0 ~4.75	2.5 ~3.55	11~30Ω /1MHz 29~70Ω /10MHz	>10A
				403025
				853025
				784730
Ni-Zn Ferrite Bead Array			SMA	455625		4.5 ~8.5	5.6	3	35~100Ω	>17A
				855625
				908545
Multilayer Chip Bead			JCB	1005(0402)		1.0 ~4.5	0.5 ~3.2	0.5 ~1.5	9~2000Ω	0.05 ~6A
				1608(0603)
				2012(0805)
				3215(1206)
				3225(1210)
				4532(1812)
SMD Wide Band Choke			R5H	55		5.5-8.5	5	4.6	416Ω~580Ω	5A
				85



SMD Chip Inductors
Products classification		Photo	P/N	Series		Dimensions (mm)			Inductance	Rated Current
						L	W	H

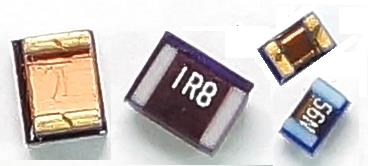

High Frequency Wound Chip Inductors			JWI-C/F	0402		1.0 ~3.2	0.55 ~2.5	0.5 ~2.2	1nH~47uH	0.045A ~1.36A
				0603
				0805
				1008
				1210
SMD Air Wound Coil			JAS	291A/B		2.21~ 6.86	φ1.42 ~3.05		1.6nH ~18.5nH	1.6A ~4A
				292A/B
High Frequency Multilayer Chip Inductors			JCI-C	0603		0.6 ~1.0	0.3 ~0.5	0.33 ~0.5	1nH~120nH	0.12A ~0.47A
				1005
Wound Chip Inductors			JWI	252018		2.5 ~4.5	2.0 ~3.2	1.8 ~3.2	10nH~1.0mH	0.03A ~0.8A
				322522T
				453232
Multilayer Chip Inductors			JCI	1608(0603)		1.6 ~2.0	0.8 ~1.2	0.8 ~1.2	100nH~10uH	0.03A ~0.25A
				2012(0805)



Molding SMD Power Coil
Products classification		Photo	P/N	Series		Dimensions (mm)			Inductance at 100KHz	Rated Current
						L	W	H

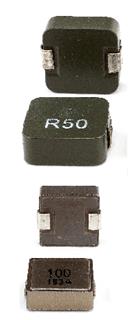

Molding Type High Current Power Inductor (Carbonyl iron powder + Round Wire)			JRPI-M	0312	0624	4.45 ~17.6	4.0 ~16.9	1.0 ~6.7	100nH ~100uH	1.2A ~125A
				0302	0603
				0412	0605
				0418	0804
				0402	0805
				0515	1004
				0518	1005
				0503	1235
				0612	1205
				0615	1206
				0618	1265
					1707

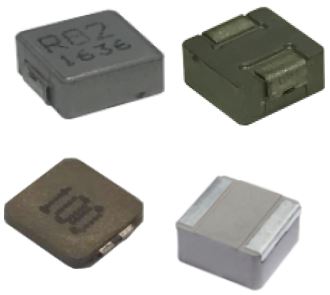

Molding Type High Current Power Inductor (Metal Alloy powder + Round Wire)			JRPI-P	0402	1004	4.45 ~23.5	4.0 ~22	1.8 ~12.6	100nH ~100uH	1.9A ~100A
				0502	1005
				0503	1205
				0624	1206
				0603	1265
				0604	1707
				0605	2313

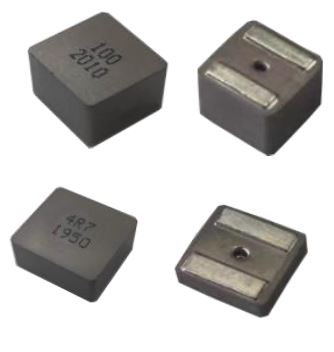

Molding Type High Current Power Inductor (Metal Alloy powder + Flat Wire)			JRPI-F	0402	0707	4.4 ~17.5	4.4 ~16.5	1.9 ~12.7	100nH~33uH	7.0A ~52A
				0502	0808
				0503	1006
				0603	1010
				0604	1205
				0605	1508
				0702	1510
				0703	1513
				0705
Mini Molding Type High Current Power Inductor (Metal Alloy + flat wire)			JRIM	201610(0806)		2 ~3.2	1.6 ~2.5	0.8 ~1.8	220nH~4.7uH	1.9A ~10A
				322510(1210)
				322512(1210)
				322520(1210)
Mini Molding Type High Current Power Inductor			JWI-FW	252010		2.5	2.0	1.0 ~1.2	0.24uH ~4.7uH	1.6A ~5.5A
				252012



Common mode choke
Products classification		Photo	P/N	Series		Dimensions (mm)			Impedance at 100MHz	Rated Current
						L	W	H

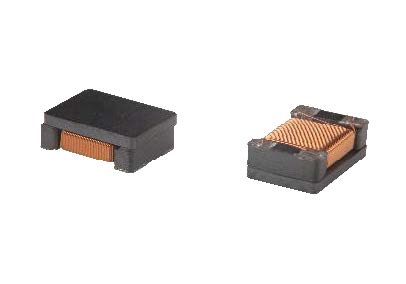

Common mode choke			JPWC	0603		1.6 ~4.5	0.8 ~3.2	1.1 ~2.8	22Ω~2800Ω	0.2A ~4.0A
				0805
				1206
				1210
				1812

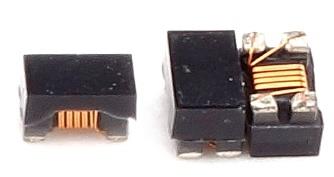

SMD BALUN X'FMR			JPWB	2012		2	1.2	1.2	10mΩ	0.33mA
Common mode choke			JACM	3225		3.2 ~9.1	2.5 ~5.1	2.2 ~3.9	100~2000Ω	0.2A~2A
				4532
				9152L

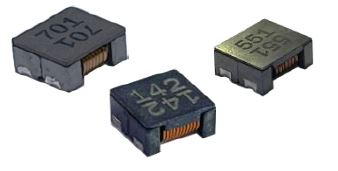

High current CMC for Power Line			JSCM	0706V		7.0 ~12	6.0 ~10.8	3.8 ~6.4	40Ω~2000Ω	2A ~15A
				0907V
				1211V



DIP Inductor
Products classification		Photo	P/N	Series		Dimensions (mm)			Inductance / Impedance	Rated Current
						L	W	H
PK choke			JPK			φ5.5~ φ17.5	7.5~ 19.5		Customized	Customized
Choke			EC	EC22(0204)		φ5.0~ φ12.0	2.8~ 5.0	-	100nH ~820uH	0.026A ~1.7A
				EC24(0307)
				EC36(0410)
				EC46(0510)
R coil			JASA						Customized	Customized
Toroid Coil			JTI						Customized	Customized



Sealed Type SMD Power Coil
Products classification		Photo	P/N	Series		Dimensions (mm)			Inductance at 1MHz	Rated Current
						L	W	H

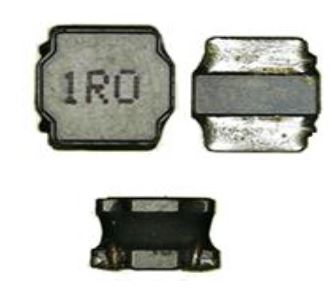

Ferrite Core  + Round Wire			JNR	3010H	5020H	3.0 ~8.0	3.0 ~8.0	1.0 ~4.2	0.43uH~68uH	0.6A ~12.5A
				3012H	5040H
				3015H	6020H
				4010H	6028H
				4012H	6045H
				4018H	8040H
Ferrite Core  + Flat Wire			JNR	201610P		2.0 ~3.0	1.6 ~3.0	1.0 ~1.2	0.24uH~10uH	1.0A ~7.0A
				252010P
				252012P
				3012P
Alloy Core  + Round Wire			JNR	201610R		2.0 ~2.5	1.6 ~2.0	1.0 ~1.2	0.24uH~10uH	0.85A ~8.0A
				252008R
				252010R
				252012R
Alloy Core  + Flat Wire			JNR	201610F		2.0~2. 5	1.6~2. 0	1.0	0.24uH ~4.7uH	1.4A ~9.5A
				252010F
Low profile			JNR	201610U		2.0 ~2.5	1.6 ~2.0	1.0 ~1.2	0.47uH~22uH	0.38A ~3.6A
				252010U
				252012U
High current			JNR	201610D		2.0 ~2.5	1.6 ~2.0	1	0.1uH~2.2uH	1.7A ~8.0A
				252010D



SMD Power Coil
Products classification		Photo	P/N	Series		Dimensions (mm)			Inductance	Rated Current
						L	W	H
unshielded SMD Power Coil			JQH	3225		3.2 ~4.5	2.5 ~3.2	2.0 ~2.6	560nH~ 2.2mH	0.03A ~0.53A
				4532
unshielded  SMD Power Coil			JTP	0315	0703	3.5 ~10	3.0 ~9.0	1.6 ~5.4	1.0uH~1.0mH	0.075A ~7A
				0302	0705
				0403	1004
				0504	1005

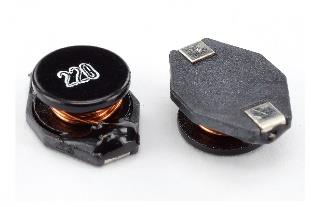

unshielded  SMD Power Coil			JSPK	0402		6.3 ~18.5 4	4.4 ~15.4	3.1 ~7.5	1.0uH~ 820uH	0.108A ~4.3A
				0802
				0804
				0810
				1306
Shielded SMD Power Coil			JPRH	0703		7.3 ~12.5	7.3 ~12.5	3.2 ~10	1.0uH~2.2mH	0.1A ~14A
				0704
				1205
				1207
				1209
Shielded SMD Power Coil			JPRD	0315	0603	3.8 ~10	3.8 ~10.1	1.8 ~4.0	1.0uH~82uH	0.23A ~7A
				0402	0604
				0403	1004
				0503
Shielded SMD Power Coil			JSB	0703	1206	7.6 ~12.5	7.6 ~12.5	3.5 ~6.5	1.0uH~1.0mH	0.18A ~8.1A
				0705	1207
				1003



Others
Products classification		Photo	P/N	Series		Dimensions (mm)			Impedance at 100MHz	Rated Current
						L	W	H

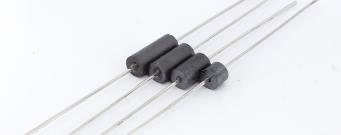

DIP Ferrite Bead			RH /FDB	353008~359008		3~9	3.5		30-100Ω

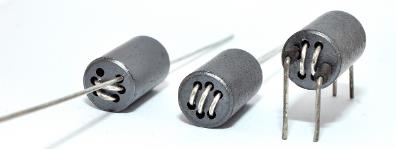

Wide Band Choke			R6H	1.0TS~1.5TS*2		6	10		178-580Ω
Dataline Noise Filter			JMLF			15~43	13~31		75Ω~200Ω
