DATE - 2023/11/10
FETEK東沅科技公司簡介
供應鏈
研發
  • FETek – 性價比最佳的設計
              – 最佳的產品開發能力
  • Wafer Works / Covalent EPI:  8” 中、低壓 MOSFET
製程
  • 力積電(PSMC) – 12V~250V 0.18um Trench 技術
  • 微鑫(MMEC) – 業界領先4mil BGBM 製程技術
  • 微矽(MSEC) – 台灣一線 CP 測試廠
封裝
  • 長電(JCET) – China No. 1 封裝廠
  • 華羿微(HUAYI) – China No. 2 封裝廠
  • 杰群(GTBF) – Infineon/ON-Semi/Vishay… 認證封裝廠
  • 捷敏(GEM) – Mitsubishi/ON-Semi…認證封裝廠
  • 重慶萬國(APM) – AOS China 封裝廠

產品製程開發時程

YEAR 2021 2022 2023 2024 2025
30V~40V 30V/40V DG
Gen 2 Series		   30V/40V DG
Gen 3 Series
60V~100V
60V~100V DG
Gen 3 Series
 60V DG
Gen3+ Series		 -100V DG P Series
120V~200V 120V/150V DG
Gen 2 Series		 200V DG
Gen 1 Series		 120V-150V DG
Gen 3 Series
GaN FET     650V GaN FET
SiC Devices       600V SiC SBD 1200V SiC
​MOSFET
HV DT SJ       600V/650V Series 700V Series
​
新產品開發時程
​
Package
Outline
BVDSS
(V)		 Rdson
@10V
(mohm)		 SOP8
(S)		 PRPAK3X3
(BB)		 PRPAK5X6
(BA)		 TO-252
(D)		 TO-263
(H)		 TO-251
(R)		 TO-220
(P)		 TO-220F
(F)		 TOLL
(Y)
30 0.9     FKBA3086
1.6     FKBA3048
2     FKBA3072
2.4   FKBB3072
3.9 FKS3056 FKBB3056 FKBA3056
6.3   FKBB3052 FKBA3052
8 FKS3058 FKBB3058 FKBA3058 FKD3058
40 1     FKBA4086
1.8     FKBA4048
2.8     FKBA4064
3.9   FKBB4752
6.5   FKBB4054 FKBA4054
8.5 FKS4052 FKBB4052 FKBA4052 FKD4052
60 2.1     FKBA6074
3.6 FKS6048   FKBA6048
5.2   FKBB6066 FKBA6066
8.5   FKBB6056 FKBA6056 FKD6056   FKR6056
65 5.2   FKBB6566
80 3     FKBA8074A
6.5 FKS8048   FKBA8048 FKD8048 FKH8048 FKP8048
8.7     FKBA8066 FKD8066
100 1.9                 FKY0076A
2.2         FKH0076A   FKP0076A
4.5     FKBA15810C FKD15810C FKH15810C     FKF15810C
8 FKS0048   FKBA0048 FKD0048     FKP0070 FKF0048
11.5     FKBA0094 FKD0094   FKR0094 FKP0094
20 FKS0056   FKBA0056
120 6.2         FKH100N12   FKP100N12
8     FKBA90N12       FKP90N12
30       FKD48N12A
150 9     FKBA20N15S FKD20N15S
56         FKH100N15   FKP100N15
200 100       FKD20N20     FKP20N20
​*Under Developing


Complementary(N+P) MOSFET

DC-BUS 2x2 DFN
 3x3 DFN EP(NEP)
 5x6 DFN
 SOP8
 TO252-4
20V FKCB2903
30V   FKBB3909 FKBB3901
FKBE3911(QH8MA2)
FKBE3901(QH8MA3)
FKBE3903(QH8MA4)		 FKBA3903
FKBA3905		 FKS3901 FKS3903
FKS3905 FKS3907		 FKD3901 FKD3903
40V   FKBE4903 FKBB4903 FKBA4903
FKBA4905
​FKBA4909		 FKS4901 FKS4903
FKS4905 FKS4907		 FKD4903 FKD4905
60V   FKBB6903 FKBA6903 FKS6901 FKS6903 FKD6901 FKD6903
100V   FKBE0901 FKBA0903 FKS0903

Dual N MOSFET

DC-BUS 2x2 DFN
 3x3 DFN EP(NEP)
 5x6 DFN
 SOP8
 TO252-4
20V
30V   FKBB3202 FKBB3214 FKBA3202
FKBA3204		 FKS3202 FKS3204
FKS3206 FKS3208
FKS3214
40V     FKBA4206 FKS4204 FKS4214
60V   FKBB6214 FKBB6254 FKBA6214 FKS3204 FKS6208
FKS6214
100V   FKBB0208 FKBB0210
FKBB0214
FKBB02100AE		 FKBA0204
FKBA0256		 FKS0204 FKS0208
FKS0214 FKS0228

Single P MOSFET for Protection

DC-BUS SOT223
 SOT23
 SOP8
 TO252
 PAPAK3x3
 PRPAK5x6
20V   FKN2607
FKN2601
FKN2609
FKN2643		     FKBB2627
30V FKL3101
FKL3103
FKL3107		 FKN3101
FKN3103
FKN3107		 FKS3101
FKS3103
FKS3107		 FKD3101
FKD3103
FKD3105
FKD3107
FKD3113
FKD3115		 FKBB3103
FKBB3105
FKBB3115		 FKBA3103
FKBA3105
FKBA3115
FKBA3031
FKBA3113
40V   FKN4101 FKS4101
FKS4103
FKS4113
FKS4115		 FKD4101
FKD4103
FKD4113
FKD4115		 FKBB4113
FKBB4115		 FKBA4115
60V FKL6107 FKN6107 FKS6101
FKS6103
FKS6113
FKS6115		 FKD6101
FKD6103
FKD6107
FKD6113
FKD6115		 FKBB6115 FKBA6115
100V FKL0107 FKN0107   FKD0107
FKD0139		 FKBB0115 FKBA0139

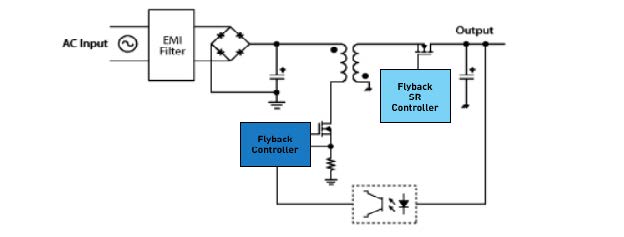

AC-DC 電源方案<75W
Isolation Fly back Secondary-side Regulation Synchronous Rectifier<75W
Vout 40V(<5V) 60V(<12V) 80V(<19V) 100V(<24V) 150V(<36V)
PRPAK3x3
FKBB4072 (2.7mΩ)
FKBB4016 (6.5mΩ)
FKBB4052 (8.5mΩ)
FKBB4062 (15mΩ)
FKBB6066 (5.2mΩ)
FKBB6056 (8.5mΩ)
FKBB6016 (12mΩ)
FKBB6006 (20mΩ)

PRPAK5x6
 FKBA4086 (1.1mΩ)
FKBA4048 (1.8mΩ)
FKBA4094 (3.2mΩ)
FKBA4016 (6.5mΩ)
FKBA4006 (7.5mΩ)
FKBA4052 (8.5mΩ)
FKBA4004 (11.5mΩ)		 FKBA6074 (2.1mΩ)
FKBA6048 (3.6mΩ)
FKBA6040 (5.2mΩ)
FKBA6032 (8.5mΩ)
FKBA6016 (12mΩ)
FKBA6006 (16mΩ)		 FKBA8074A (3mΩ)
FKBA8048 (6.5mΩ)
FKBA8016 (12mΩ)		 FKBA15810C (4.5mΩ)
FKBA0048 (8mΩ)
FKBA0094 (11.5mΩ)
FKBA0040 (14mΩ)
FKBA0036 (18.5mΩ)		 FKBA90N15 (13mΩ)
FKBA20N15S (56mΩ)
SOP8
 FKS4052 (1.8mΩ)
FKS4004 (12mΩ)
FKS4062 (15mΩ)
FKS4014 (17mΩ)
FKS4002 (28mΩ)		 FKS6040 (6.5mΩ)
FKS6032 (8.5mΩ)
FKS6016 (12mΩ)
FKS6006 (18mΩ)
FKS6004 (30mΩ)
FKS6014 (40mΩ)		 FKS8016 (12mΩ) FKS0048 (8mΩ)
FKS0094 (12mΩ)
FKS0040 (14mΩ)
FKS0026 (20mΩ)
FKS0032 (24mΩ)
FKS0016 (47mΩ)

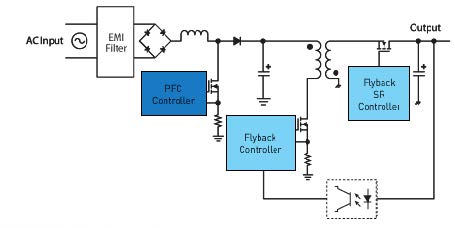

AC-DC 電源方案<70W~150W
Isolation Fly back Secondary-side Regulation Synchronous Rectifier Mid Power <75~150W
Vout 40V(<5V) 60V(<12V) 80V(<19V) 100V(<24V) 150V(<36V)
TO-252
 FKD6040 (5.2mΩ)
FKD6032 (8.5mΩ)
FKD6016 (12mΩ)
FKD6006 (20mΩ)
FKD6004 (30mΩ)
FKD8048 (6.5mΩ)
FKD8016 (12mΩ)
FKD8014 (100mΩ)
 FKD0048 (8.5mΩ)
FKD0026 (22mΩ)
FKD0016 (47mΩ)
FKD0028 (66mΩ)
FKD0034 (100mΩ)		 FKD28N15 (46mΩ)
FKD20N15S (56mΩ)
FKD20N15 (88mΩ)		 FKD18N20 (170mΩ)
PRPAK5x6
 FKBA6074 (2.1mΩ)
FKBA6048 (3.6mΩ)
FKBA6040 (5.2mΩ)
FKBA6032 (8.5mΩ)
FKBA6016 (12mΩ)		 FKBA8074A (3mΩ)
FKBA8048 (6.5mΩ)
FKBA8016 (12mΩ)		 FKBA15810C (4.5mΩ)
FKBA0048 (8mΩ)
FKBA0094 (11.5mΩ)
FKBA0040 (14mΩ)
FKBA0036 (18.5mΩ)		 FKBA90N15 (13mΩ)
FKBA20N15S(56mΩ)
SOP8
 FKS6040 (6.5mΩ)
FKS6032 (8.5mΩ)
FKS6016 (12mΩ)
FKS6006 (18mΩ)
FKS6004 (30mΩ)
FKS6014 (40mΩ)		 FKS8016 (12mΩ) FKS0048 (8mΩ)
FKS0094 (12mΩ)
FKS0040 (14mΩ)
FKS0026 (20mΩ)
FKS0032 (24mΩ)
FKS0016 (47mΩ)

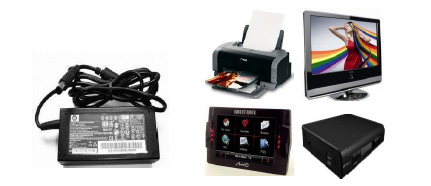

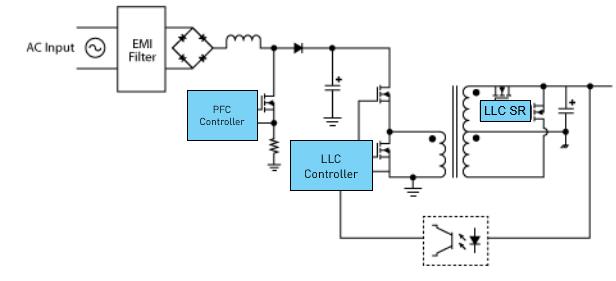

AC-DC 電源方案<450W
Isolation Fly back Secondary-side Regulation Synchronous Rectifier High Power <450W
Vout 40V(<5V) 60V(<12V) 80V(<19V) 100V(<24V) 150V(<36V)
TO220(F)
 FKP4086 (1.9mΩ)
FKP4048 (2.6mΩ)
FKP4094 (3.8mΩ)
FKP4016 (6.5mΩ)		 FKP6074 (2.8mΩ)
FKP6048 (4.5mΩ)
FKP6040 (6.5mΩ)
FKP6016 (12mΩ)
FKP6006 (20mΩ)		 FKP8074A (3.5mΩ)
FKP8048A (6.5mΩ)
FKP8016 (12mΩ)		 FKP0076A (2.2mΩ)
FKP15810C (4.5mΩ)
FKP0048 (9mΩ)
FKP0094 (11.5mΩ)		 FKP100N15(9mΩ)
FKP90N15 (13mΩ)
FKP18N20 (170mΩ)
PRPAK5x6
 FKBA4086 (1.1mΩ)
FKBA4048 (1.8mΩ)
FKBA4094 (3.2mΩ)
FKBA4016 (6.5mΩ)
FKBA4006 (7.5mΩ)
FKBA4052 (8.5mΩ)		 FKBA6074 (2.1mΩ)
FKBA6048 (3.6mΩ)
FKBA6040 (5.2mΩ)
FKBA6032 (8.5mΩ)
FKBA6016 (12mΩ)
FKBA6006 (16mΩ)		 FKBA8074A (3mΩ)
FKBA8048 (6.5mΩ)
FKBA8016 (12mΩ)		 FKBA15810C (4.5mΩ)
FKBA0048 (8mΩ)
FKBA0094 (11.5mΩ)
FKBA0040 (14mΩ)
FKBA0036 (18.5mΩ)		 FKBA90N15 (13mΩ)
FKBA20N15S (56mΩ)
TO251
   FKR6040 (5.2mΩ)
FKR6016 (12mΩ)
FKR6006 (20mΩ)		 FKR8016 (12mΩ)
FKR8014 (100mΩ)		 FKR0048 (8.5mΩ)
FKR0026 (18mΩ)
FKR0016 (47mΩ)
​FKR0004 (112mΩ)

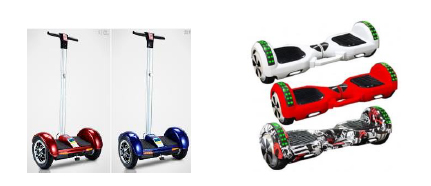

AC-DC 電源方案<350W~1500W
High-Power (Champion Dual foward 85+) about 350W~1500W
Vout 40V(<5V) 60V(<12V) 80V(<19V) 100V(<24V) 150V(<36V)
TO-252
 FKP4086 (1.9mΩ)
FKP4048 (2.6mΩ)
FKP4094 (3.8mΩ)
FKP4016 (6.5mΩ)		 FKP6074 (2.8mΩ)
FKP6048 (4.5mΩ)
FKP6040 (6.5mΩ)
FKP6016 (12mΩ)
FKP6006 (20mΩ)		 FKP8074A (3.5mΩ)
FKP8048A (6.5mΩ)
FKP8016 (12mΩ)		 FKP0076A (2.2mΩ)
FKP15810C (4.5mΩ)
FKP0048 (9mΩ)
FKP0094 (11.5mΩ)		 FKP100N15 (9mΩ)
FKP90N15 (13mΩ)
FKP18N20 (170mΩ)
PRPAK5x6
 FKBA4086 (1.1mΩ)
FKBA4048 (1.8mΩ)
FKBA4094 (3.2mΩ)
FKBA4016 (6.5mΩ)
FKBA4006 (7.5mΩ)
FKBA4052 (8.5mΩ)		 FKBA6074 (2.1mΩ)
FKBA6048 (3.6mΩ)
FKBA6040 (5.2mΩ)
FKBA6032 (8.5mΩ)
FKBA6016 (12mΩ)
FKBA6006 (16mΩ)		 FKBA8074A (3mΩ)
FKBA8048 (6.5mΩ)
FKBA8016 (12mΩ)		 FKBA15810C (4.5mΩ)
FKBA0048 (8mΩ)
FKBA0094 (11.5mΩ)
FKBA0040 (14mΩ)
FKBA0036 (18.5mΩ)		 FKBA90N15 (13mΩ)
FKBA20N15S (56mΩ)
TO251
   FKR6040 (5.2mΩ)
FKR6016 (12mΩ)
FKR6006 (20m)		 FKR8016 (12mΩ)
FKR8014 (100mΩ)		 FKR0048 (8.5mΩ)
FKR0026 (18mΩ)
FKR0016 (47mΩ)
FKR0004 (112mΩ)

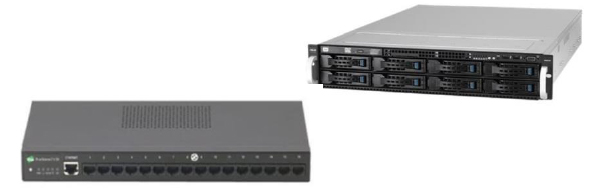

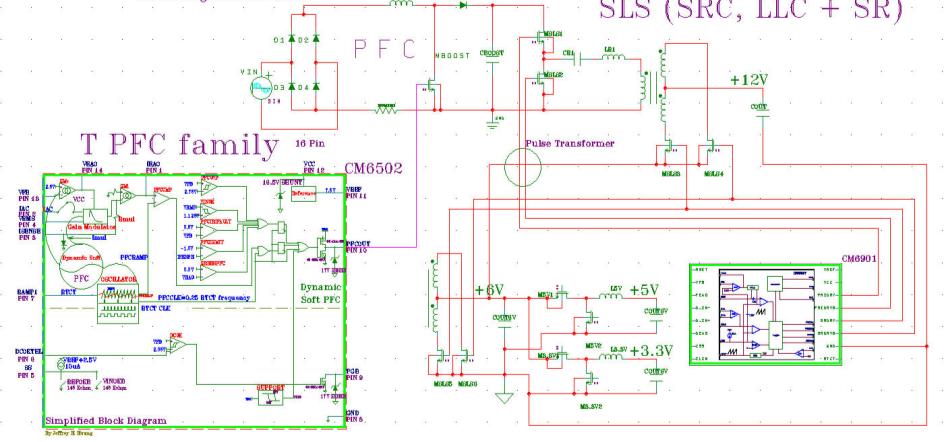

AC-DC 電源方案<150W~1500W
High-Power (Champion LLC+SR) about 150W~1500W
Vout 40V(<5V) 60V(<12V) 80V(<19V) 100V(<24V) 150V(<36V)
TO220(F)
 FKP4086 (1.9mΩ)
FKP4048 (2.6mΩ)
FKP4094 (3.8mΩ)
FKP4016 (6.5mΩ)		 FKP6074 (2.8mΩ)
FKP6048 (4.5mΩ)
FKP6040 (6.5mΩ)
FKP6016 (12mΩ)
FKP6006 (20mΩ)		 FKP8074A (3.5mΩ)
FKP8048A (6.5mΩ)
FKP8016 (12mΩ)		 FKP0076A (2.2mΩ)
FKP15810C (4.5mΩ)
FKP0048 (9mΩ)
FKP0094 (11.5mΩ)		 FKP100N15 (9mΩ)
FKP90N15 (13mΩ)
FKP18N20 (170mΩ)
PRPAK5x6
 FKBA4086 (1.1mΩ)
FKBA4048 (1.8mΩ)
FKBA4094 (3.2mΩ)
FKBA4016 (6.5mΩ)
FKBA4006 (7.5mΩ)
FKBA4052 (8.5mΩ)		 FKBA6074 (2.1mΩ)
FKBA6048 (3.6mΩ)
FKBA6040 (5.2mΩ)
FKBA6032 (8.5mΩ)
FKBA6016 (12mΩ)
FKBA6006 (16mΩ)		 FKBA8074A (3mΩ)
FKBA8048 (6.5mΩ)
FKBA8016 (12mΩ)		 FKBA15810C (4.5mΩ)
FKBA0048 (8mΩ)
FKBA0094 (11.5mΩ)
FKBA0040 (14mΩ)
FKBA0036 (18.5mΩ)		 FKBA90N15 (13mΩ)
FKBA20N15S (56mΩ)
TO251
   FKR6040 (5.2mΩ)
FKR6016 (12mΩ)
FKR6006 (20m)		 FKR8016 (12mΩ)
FKR8014 (100mΩ)		 FKR0048 (8.5mΩ)
FKR0026 (18mΩ)
FKR0016 (47mΩ)
FKR0004 (112mΩ)

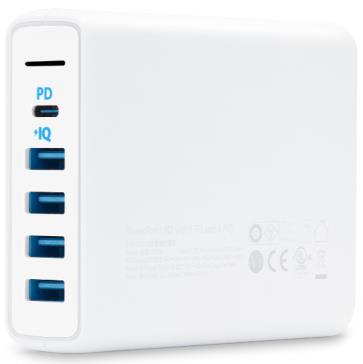

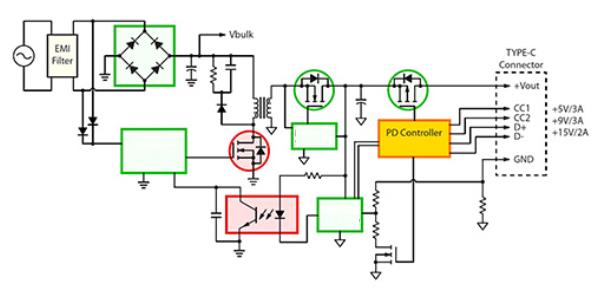

DC-DC 電源方案-USB PD接口協議
Vout 30V 40V 60V
PRPAK3x3
 FKBB3115 (8.7mΩ)
FKBB3105 (14mΩ)
FKBB3103 (20mΩ)
PRPAK5x6
 FKBA3031 (7.2mΩ)
FKBA3115 (9.8mΩ)
FKBA3105 (15mΩ)
FKBA3113 (30mΩ)
TO220(F)
 FKS3115 (8.7mΩ)
FKS3105 (15mΩ)
FKS3103 (20mΩ)
FKS3113 (30mΩ)
FKS3101 (42mΩ)		 FKS4115 (13mΩ)
FKS4103 (32mΩ)
FKS4113 (40mΩ)
FKS4101 (65mΩ)		 FKS6115 (25mΩ)
FKS6103 (70mΩ)
FKS6113 (90mΩ)
FKS6101 (140mΩ)
SOP8
 FKP3115 (10.5mΩ)
FKP3105 (14mΩ)		 FKP4115 (13mΩ) FKP6115 (27mΩ)
FKP6103 (70mΩ)
FKP6113 (90mΩ)

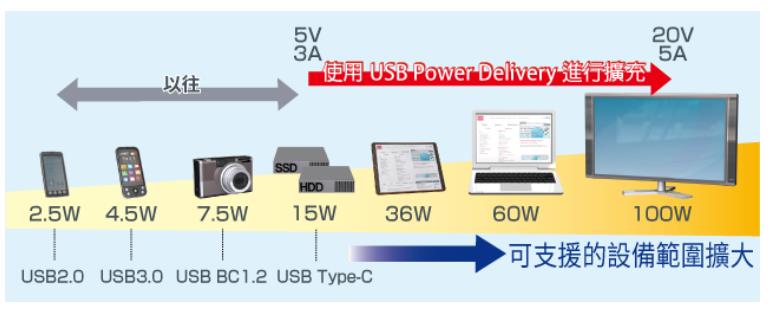

DC-DC 電源方案-升壓和降壓
Vout 30V 40V 60V 80V 100V
PRPAK3x3
 FKBB3115 (8.7mΩ)
FKBB3105 (14mΩ)
FKBB3103 (20mΩ)
PRPAK5x6
 FKBA3031 (7.2mΩ)
FKBA3115 (9.8mΩ)
FKBA3105 (15mΩ)
FKBA3113 (30mΩ)		 FKBA4048 (1.8mΩ)
FKBA4094 (3.2mΩ)
FKBA4016 (6.5mΩ)
FKBA4006 (7.5mΩ)
FKBA4052 (8.5mΩ)
FKBA4004 (11.5mΩ)		 FKBA6048 (3.6mΩ)
FKBA6040 (5.2mΩ)
FKBA6032 (8.5mΩ)
FKBA6016 (12mΩ)
FKBA6006 (16mΩ)		 FKBA8048 (6.5mΩ)
FKBA8016 (12mΩ)		 FKBA0048 (8mΩ)
FKBA0094 (11.5mΩ)
FKBA0040 (14mΩ)
FKBA0036 (18.5mΩ)
SOP8
 FKS3115 (8.7mΩ)
FKS3105 (15mΩ)
FKS3103 (20mΩ)
FKS3113 (30mΩ)
FKS3101 (42mΩ)		 FKS4115 (13mΩ)
FKS4103 (32mΩ)
FKS4113 (40mΩ)
FKS4101 (65mΩ)		 FKS6040 (6.5mΩ)
FKS6032 (8.5mΩ)
FKS6016 (12mΩ)
FKS6006 (18mΩ)
FKS6004 (30mΩ)		 FKS8016 (12mΩ)
FKS0048 (8mΩ)
FKS0094 (12mΩ)
FKS0040 (14mΩ)
FKS0026 (20mΩ)
FKS0032 (24mΩ)
TO-252
     FKD6040 (5.2mΩ)
FKD6032 (8.5mΩ)
FKD6016 (12mΩ)
FKD6006 (20mΩ)
FKD6004 (30mΩ)		 FKD8048 (6.5mΩ)
FKD8016 (12mΩ)
FKD8014 (100mΩ)		 FKD0048 (8.5mΩ)
FKD0026 (22mΩ)
FKD0016 (47mΩ)
FKD0028 (66mΩ)
FKD0034 (100mΩ)

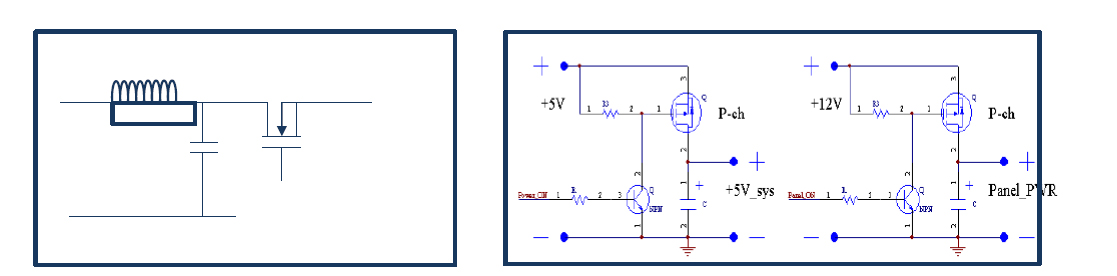

電源信號開關應用
N-Channel (SOT-23 , SOP8 ..)
20V FKN2510 , FKN2607 ……
30V FKS3008, FKS3002 ……
40V FKS4008, FKS4002, FKS4014 …...
40V FKS4052, FKBA4048, FKBA4052 ……
P-Channel (SOT-23 , SOP8 ..)
20V  FKN2601, FKN2611, FKN2609 ……
30V FKS3107, FKS3101, FKN3113 ……
40V FKS4101, FKS4103, FKS4113 ……
(Package Type: N-SOT23 / S-SOP8 / BA-PRPAK 5x6 )​

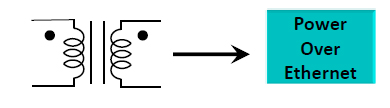

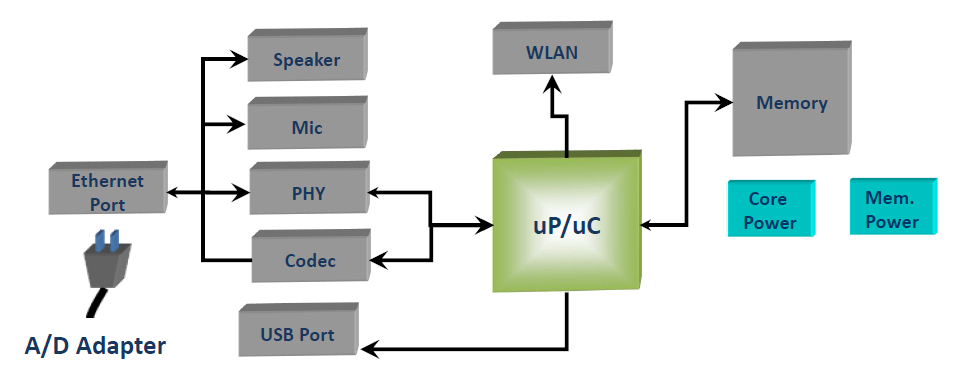

集線器、交換器、語音通訊應用


MOS for DC-DC
H/S MOS
FKD3014/FKBA3014 (30V 12mΩ)
FKD3004/FKBA3004 (30V 8.5mΩ)
FKBA3060/3058/3052 (30V 9.8mΩ/8mΩ/6.3mΩ)

L/S MOS
FKD3006/FKBA3006 (30V 5.5mΩ)
FKD3016/FKBA3016 (30V 4mΩ)
FKD3018B/FKBA3018B (30V 2.4mΩ)
FKBA3054/3056 (30V 5.2mΩ/3.9mΩ)

HV MOS
FKD/R 01N65 (1A 650V)
FKD/R 02N65 (2A 650V)
FKD/R 03N65 (3A 650V)
FKD/R 04N65 (4A 650V)
FKP/F 07N65 (7A 650V)
FKP/F 10N65 (10A 650V)
FKP/F 10N60 (10A 600V)
FKP/F 12N60 (12A 600V)


MOS
FKL0004 (100V)
FKL0008 (100V)

(Package Type: L-SOT223 / D-TO252 / R-TO251 / BA-PRPAK 5x6 / P-TO220 / F-TO220F)

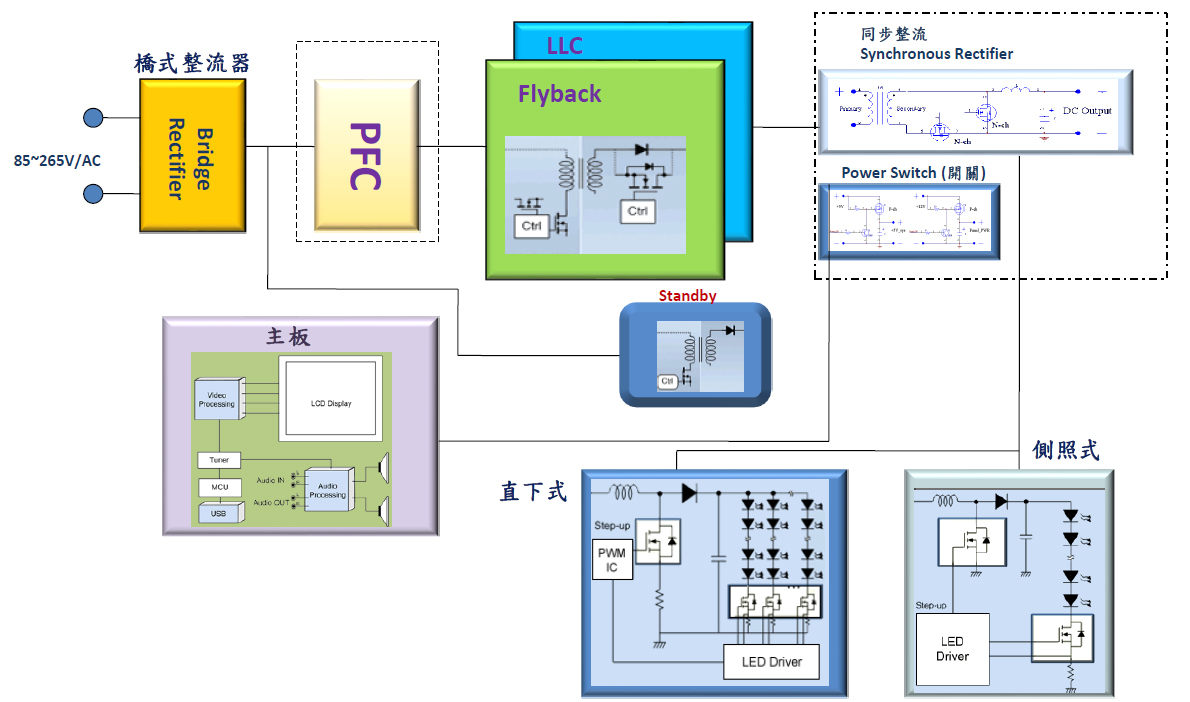

LED螢幕、電視應用

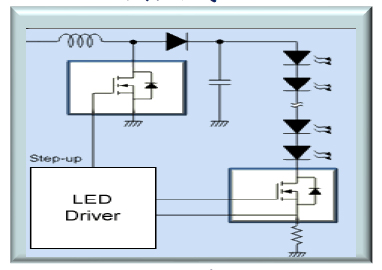

側照式

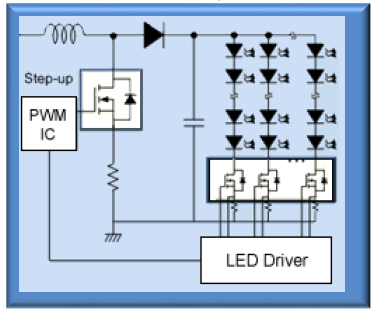

直下式

升壓: 100~200V N CH FET
FKD0048 / DPAK, N Channel, 100V / 8.5mΩ
FKD0094 / DPAK, N Channel, 100V / 11.5mΩ
FKD0026 / DPAK, N Channel, 100V / 22mΩ
FKD0028 / DPAK, N Channel, 100V / 66mΩ
FKD0034 / DPAK, N Channel, 100V / 100mΩ
FKD0004 / DAPK, N Channel, 100V / 112mΩ
FKD0014 / DAPK, N Channel, 100V / 152mΩ
FKD20N15S / DPAK, N Channel, 150V / 56mΩ
FKD20N15 / DPAK, N Channel, 150V / 92mΩ
FKD18N20, DPAK, N Channel, 200V / 170mΩ

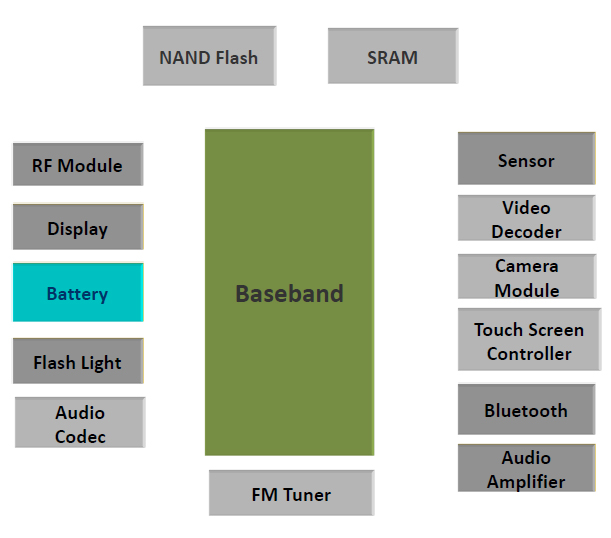

手機應用


LV MOS
FKCC8233 (20V Dual + ESD)
FKCC8204 (20V Dual + ESD)
FKCA1002 (12V Dual + ESD)
FKCA2030 (20V Dual + ESD)
FKCS2050 (20V Dual + ESD, CSP)
FKCS2052 (24V Dual + ESD, CSP)


HV MOS
FKD/R 01N65 (1A 650V)
FKD/R 02N65 (2A 650V)
FKD/R 03N65 (3A 650V)
FKD/R 04N65 (4A 650V)

(Package Type:  CA-DFN3x3 / CC-DFN2x3 / D-TO252 / R-TO251 / CS-CSP 1.1x1.1)

電池應用-MOSFET產品清單

FETEK
Part No.		 ESD Package Configuration MOSFET
Type		 VDS
(V)		 VGS
(V)		 ID
(A)		 RDS(ON)(mΩ)(Min./Typ./Max.) Competitor
4.5V 4V 3.7V 2.5V Brand Part No.
FKQ2720 Y TSOP6 Dual N 20 ±12 6 15/16/20 15.5/17/20.5 16/17.5/21 18.5/21/26 Samhop
JSCJ		 STS8201
CJL2016
FKQ2721 Y TSOP6 Dual N 20 ±12 5.5 18.5/20.5/23.5 19.5/21.5/24.5 20.5/22.5/26.5 23.5/28.5/35.5 Samhop
JSCJ		 STS8205
CJL2019
FKQ2724 Y TSOP6 Dual N 20 ±12 7 12/14/17 12.5/14.5/17.5 13/15/18 16/19.5/24.5 Samhop
JSCJ
JSCJ		 STS8816
CJL8810
CJL2013(W/O ESD)
FKQ2728 Y TSOP6 Dual N 20 ±12 5.5 18.5/21.5/24.5 19.5/22.5/25.5 20.5/23.5/27.5 23.5/29.5/36.5 Samhop
JSCJ		 STS8215
CJL2019
FKQ2726 Y TSOP8 Dual N 20 ±12 7 10/12/14.5 10.5/12.5/15 11/13.5/17 13/16/23 Diodes
AOS
JSCJ		 DMN2016UTS
AO8814
CJS8804
FKO2732 Y TSSOP8 Dual N 20 ±12 7 14/15.5/18.5 14.5/17/19.5 15/17.5/20 18/23.5/28.5 Samhop
AOS
JSCJ		 STG8810
AO8810
CJS8810
FKO2742 Y TSSOP8 Dual N 20 ±12 6 16.5/19.5/25 17/19.5/26 17.5/20/28.5 22/24/40 N/A N/A
FKCE2530 Y TDFN3.3x3.3 Single N 20 ±12 50 1.05/1.5/2 1.08/1.55/2.05 1.12/1.65/2.2 1.4/2/2.7 N/A N/A
FKCA1002 Y TDFN3x3 Dual N 12 ±8 56 2.3/3.3/4.3 2.4/3.4/4.4 2.5/3.5/4.55 3/4/5.6 N/A N/A
FKCA2030 Y TDFN3x3 Dual N 20 ±8 56 3.5/4.3/5.8 3.7/4.5/6.5 3.8/4.7/6.8 4/5/7 Samhop
NIKO
uPI
JSCJ		 SP2030
PE5A0DZ
QM2538N3
CJAE2002
FKCB8236 Y TDFN3x3 Dual N 20 ±12 6 14/17.5/22 14.5/18/22.5 15/18.5/23 17.5/22/29 Samhop STF8236
FKCC8233 Y TDFN2x3 Dual N 20 ±12 11 4.5/6/7.2 4.8/6.2/7.5 5/6.5/8.2 6/8.2/10.2 Samhop
SinoPower
SinoPower
JSCJ		 STF8233
SM9993DSQG
SM9998DSQG
CJCD2005
FKCC8204 Y TDFN2x3 Dual N 20 ±12 9.5 6.3/7.8/9 6.5/8/9.5 6.7/8.2/10 8/10/13.5 Samhop
On-Semi
JSCJ		 STF8204
FDMB2307NZ
CJCD2005
FKCC8211 Y TDFN2x3 Dual N 20 ±12 8 7/9/13 7.5/9.5/13.5 8/10/14.5 9.5/12.5/20 Samhop
Diodes
JSCJ		 STF8211
DMN2014LHAB
CJCD2005
FKCC2734 Y TDFN2x3 Dual N 20 ±12 8 10/13/16 10.5/13.5/17 11/14/18 16.5/20.5/27.5 Samhop
JSCJ		 STF8810
CJCD2007
FKBE2730 Y PRPAK3x3 NEP Dual N 20 ±12 7 12/14.5/17 12.5/15/18.5 12.8/16/20 14.5/18.5/24.5 Samhop
ON-Semi
Panasonic		 SP8601/SP8E2A
ECH8601
MTMC8E2A0LBF
FKBE2738 Y PRPAK3x3
NEP		 Dual N 20 ±12 12 6.5/9.1/10.5 7.0/9.5/10.8 7.5/10/11.5 9.5/12/15 Samhop
ON-Semi
Panasonic
JSCJ		 SP8608/STC8697
ECH8697
FC8V22090L
CJBE5005
FKCS2050 Y WLCSP1.1x1.1 Dual N 20 ±12 6 23/32/36 25/33/38 26/34/41 31/42/55 Samhop
Sanyo
JSCJ		 SC8252
EFC4615R
CJ4612SP
FKCS2052 Y WLCSP1.1x1.1 Dual N 24 ±12 6 27/40/45 28/42/48 31/44/51 42/52/70 Samhop
Sanyo		 SC8252B
EFC4612R
​
