MCP41010-E/P PDIP-8 Microchip
| 附件下載 | |
| 商品名稱 | Digital Potentiometer ICs 256 Step SPI 10kOhm |
| 訂購數量 | |
| 依數量訂價 | 50 NTD |
| FLYiNG 零件編號 | MCP41010-E/P |
| FLYiNG 庫存現貨 | 60 |
| 製造商 | Microchip |
| 製造商零件編號 | MCP41010-E/P |
| 說明 | MCP41010-E/P PDIP-8 Microchip |
| 無鉛狀態 / RoHS 指令狀態 | ROHS3 合規 |
| 訂購數量 | NTD 單價 / PCS |
| 1~9 | 50 |
| 10~99 | 48 |
| 製造商 | Microchip |
| 產品類型 | 數位電位器IC |
| 電阻 | 10 kOhms |
| POT數 | Single |
| 每個POT的分接頭 | 256 |
| 數位接口 | Serial |
| 工作電源電壓 | 2.7 V to 5.5 V |
| 運作供電電流 | 340 uA |
| 電源電壓 - 最大值 | 5.5 V |
| 安裝類型 | PCB Mount |
| 封裝/外殼 | PDIP-8 |
| 濕度敏感等級 (MSL) | 1 (無限) |
| 標準包裝 | 60/管 |

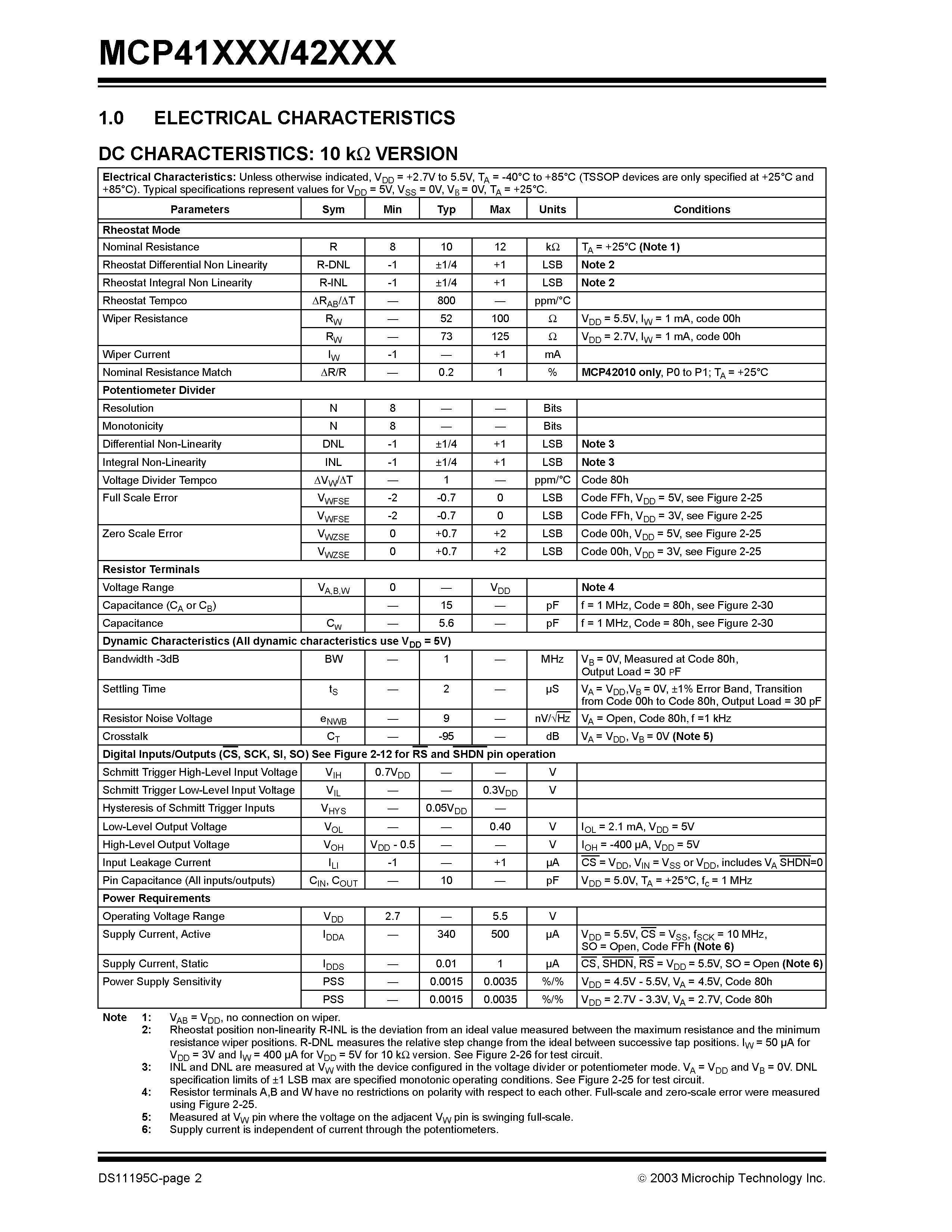

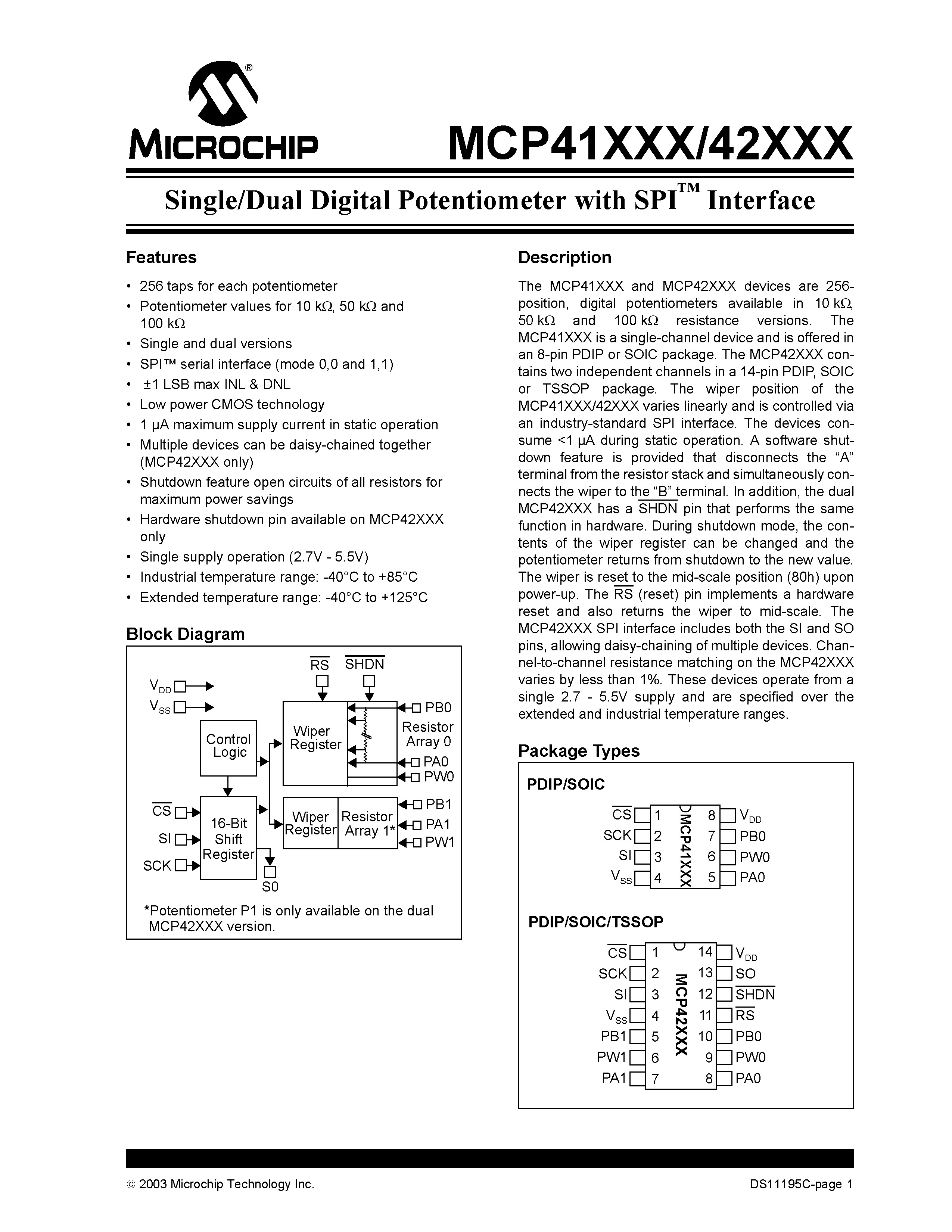

MCP41XXX/42XXX
Single/Dual Digital Potentiometer with SPI™ Interface
Features
The MCP41XXX and MCP42XXX devices are 256- position, digital potentiometers available in 10 kΩ, 50 kΩ and 100 kΩ resistance versions. The MCP41XXX is a single-channel device and is offered in an 8-pin PDIP or SOIC package. The MCP42XXX contains two independent channels in a 14-pin PDIP, SOIC or TSSOP package. The wiper position of the MCP41XXX/42XXX varies linearly and is controlled via an industry-standard SPI interface. The devices consume <1 μA during static operation. A software shutdown feature is provided that disconnects the “A” terminal from the resistor stack and simultaneously connects the wiper to the “B” terminal. In addition, the dual MCP42XXX has a SHDN pin that performs the same function in hardware. During shutdown mode, the contents of the wiper register can be changed and the potentiometer returns from shutdown to the new value. The wiper is reset to the mid-scale position (80h) upon power-up. The RS (reset) pin implements a hardware reset and also returns the wiper to mid-scale. The MCP42XXX SPI interface includes both the SI and SO pins, allowing daisy-chaining of multiple devices. Channel- to-channel resistance matching on the MCP42XXX varies by less than 1%. These devices operate from a single 2.7 - 5.5V supply and are specified over the extended and industrial temperature ranges.
MCP41XXX/42XXX
帶 SPI™ 接口的單/雙數字電位器
特徵
MCP41XXX 和 MCP42XXX 器件是 256 位數字電位器，提供 10 kΩ、50 kΩ 和 100 kΩ 電阻版本。 MCP41XXX 是單通道器件，採用 8 引腳 PDIP 或 SOIC 封裝。 MCP42XXX 包含兩個採用 14 引腳 PDIP、SOIC 或 TSSOP 封裝的獨立通道。 MCP41XXX/42XXX 的游標位置呈線性變化，並通過行業標準 SPI 接口進行控制。這些器件在靜態操作期間消耗 <1 μA。提供了軟件關斷功能，可將“A”端子與電阻器堆棧斷開，同時將雨刷器連接到“B”端子。此外，雙通道 MCP42XXX 有一個 SHDN 引腳，在硬件中執行相同的功能。在關斷模式下，可以更改抽頭寄存器的內容，電位計從關斷狀態返回到新值。上電時雨刷器復位到中間量程位置 (80h)。 RS（復位）引腳實現硬件復位，並將抽頭返回到中間量程。 MCP42XXX SPI 接口包括 SI 和 SO 引腳，允許以菊花鏈方式連接多個器件。 MCP42XXX 上的通道間電阻匹配變化小於 1%。這些器件採用 2.7 - 5.5V 單電源供電，額定溫度範圍為擴展溫度範圍和工業溫度範圍。
Single/Dual Digital Potentiometer with SPI™ Interface
Features
- 256 taps for each potentiometer
- Potentiometer values for 10 kΩ, 50 kΩ and 100 kΩ
- Single and dual versions
- SPI™ serial interface (mode 0,0 and 1,1)
- ±1 LSB max INL & DNL
- Low power CMOS technology
- 1 μA maximum supply current in static operation
- Multiple devices can be daisy-chained together (MCP42XXX only)
- Shutdown feature open circuits of all resistors for maximum power savings
- Hardware shutdown pin available on MCP42XXX only
- Single supply operation (2.7V - 5.5V)
- Industrial temperature range: -40°C to +85°C
- Extended temperature range: -40°C to +125°C
The MCP41XXX and MCP42XXX devices are 256- position, digital potentiometers available in 10 kΩ, 50 kΩ and 100 kΩ resistance versions. The MCP41XXX is a single-channel device and is offered in an 8-pin PDIP or SOIC package. The MCP42XXX contains two independent channels in a 14-pin PDIP, SOIC or TSSOP package. The wiper position of the MCP41XXX/42XXX varies linearly and is controlled via an industry-standard SPI interface. The devices consume <1 μA during static operation. A software shutdown feature is provided that disconnects the “A” terminal from the resistor stack and simultaneously connects the wiper to the “B” terminal. In addition, the dual MCP42XXX has a SHDN pin that performs the same function in hardware. During shutdown mode, the contents of the wiper register can be changed and the potentiometer returns from shutdown to the new value. The wiper is reset to the mid-scale position (80h) upon power-up. The RS (reset) pin implements a hardware reset and also returns the wiper to mid-scale. The MCP42XXX SPI interface includes both the SI and SO pins, allowing daisy-chaining of multiple devices. Channel- to-channel resistance matching on the MCP42XXX varies by less than 1%. These devices operate from a single 2.7 - 5.5V supply and are specified over the extended and industrial temperature ranges.
MCP41XXX/42XXX
帶 SPI™ 接口的單/雙數字電位器
特徵
- 每個電位計有 256 個抽頭
- 10 kΩ、50 kΩ 和 100 kΩ 的電位計值
- 單雙版本
- SPI™ 串行接口（模式 0,0 和 1,1）
- ±1 LSB 最大 INL 和 DNL
- 低功耗CMOS技術
- 靜態操作時 1 μA 最大電源電流
- 多個器件可以菊花鏈連接在一起（僅限 MCP42XXX）
- 關斷功能使所有電阻器開路，以最大程度地節省電能
- 硬件關斷引腳僅在 MCP42XXX 上可用
- 單電源操作 (2.7V - 5.5V)
- 工業溫度範圍：-40°C 至 +85°C
- 擴展溫度範圍：-40°C 至 +125°C
MCP41XXX 和 MCP42XXX 器件是 256 位數字電位器，提供 10 kΩ、50 kΩ 和 100 kΩ 電阻版本。 MCP41XXX 是單通道器件，採用 8 引腳 PDIP 或 SOIC 封裝。 MCP42XXX 包含兩個採用 14 引腳 PDIP、SOIC 或 TSSOP 封裝的獨立通道。 MCP41XXX/42XXX 的游標位置呈線性變化，並通過行業標準 SPI 接口進行控制。這些器件在靜態操作期間消耗 <1 μA。提供了軟件關斷功能，可將“A”端子與電阻器堆棧斷開，同時將雨刷器連接到“B”端子。此外，雙通道 MCP42XXX 有一個 SHDN 引腳，在硬件中執行相同的功能。在關斷模式下，可以更改抽頭寄存器的內容，電位計從關斷狀態返回到新值。上電時雨刷器復位到中間量程位置 (80h)。 RS（復位）引腳實現硬件復位，並將抽頭返回到中間量程。 MCP42XXX SPI 接口包括 SI 和 SO 引腳，允許以菊花鏈方式連接多個器件。 MCP42XXX 上的通道間電阻匹配變化小於 1%。這些器件採用 2.7 - 5.5V 單電源供電，額定溫度範圍為擴展溫度範圍和工業溫度範圍。
