LINEAR IC UTRS3088G-S08-R SOP-8 UTC
| 附件下載 | |
| 商品名稱 | LINEAR INTEGRATED CIRCUIT |
| 訂購數量 | |
| 依數量訂價 | NTD |
| FLYiNG 零件編號 | ICUTRS3088GS08RUTC |
| FLYiNG 庫存現貨 | 10 |
| 製造商 | UTC |
| 製造商零件編號 | UTRS3088G-S08-R |
| 說明 | LINEAR IC UTRS3088G-S08-R SOP-8 UTC |
| 無鉛狀態 / RoHS 指令狀態 | RoHS / Halogen free |
| DC-DC開關穩壓器 DC-DC Switching Regulator | LINEAR INTEGRATED CIRCUIT |
| 製造商 | UTC |
| 系列 | UTRS3088 |
| 原廠料號 | UTRS3088G-S08-R |
| Features | Power Management |
| 封裝／外殼 | SOP-8 |
| 安裝類型 | 表面黏著式 SMD |
| 無鉛狀態 RoHS | RoHS / Halogen free |
| 標準包裝數量 | 2500/REEL 捲軸 |

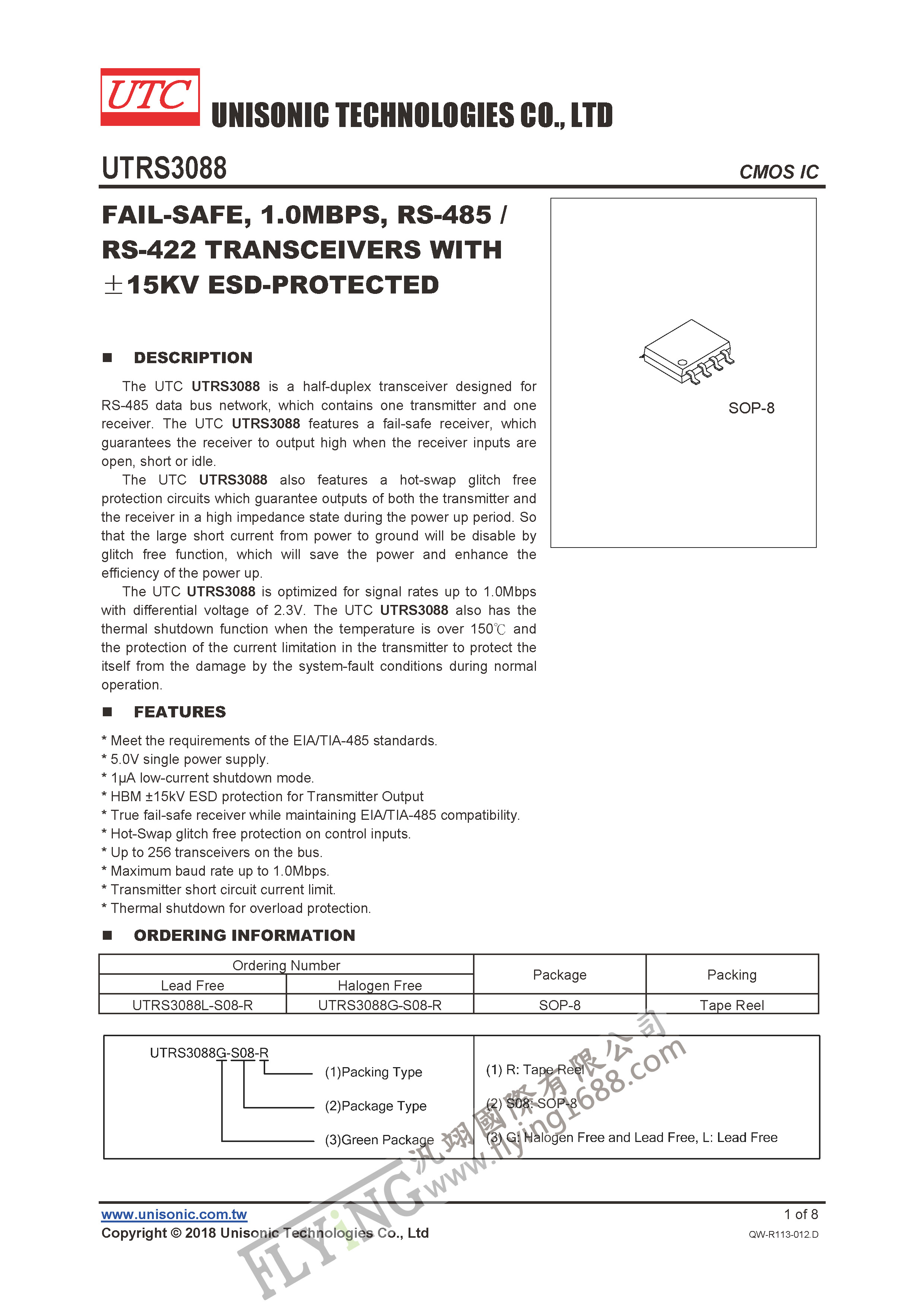

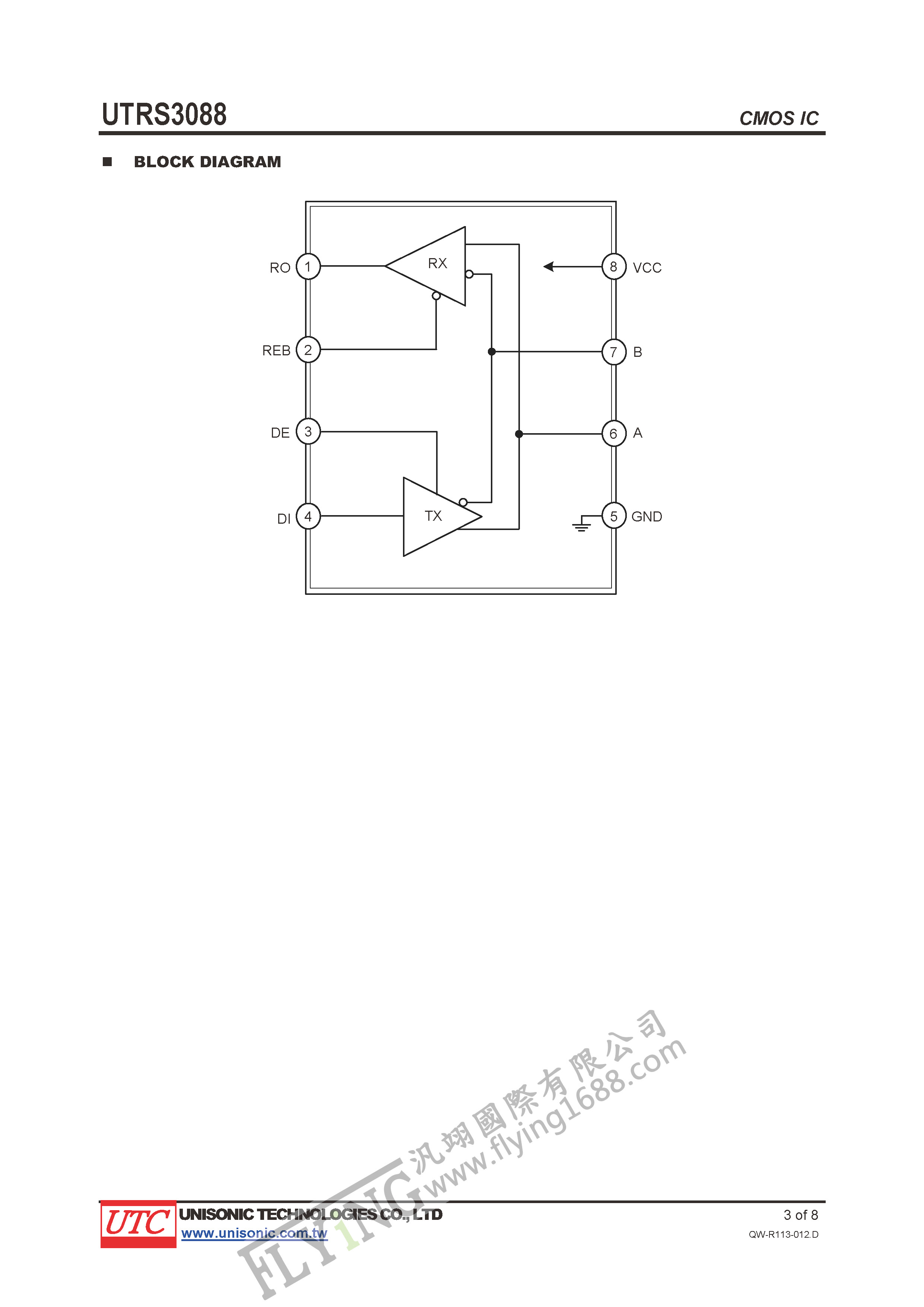

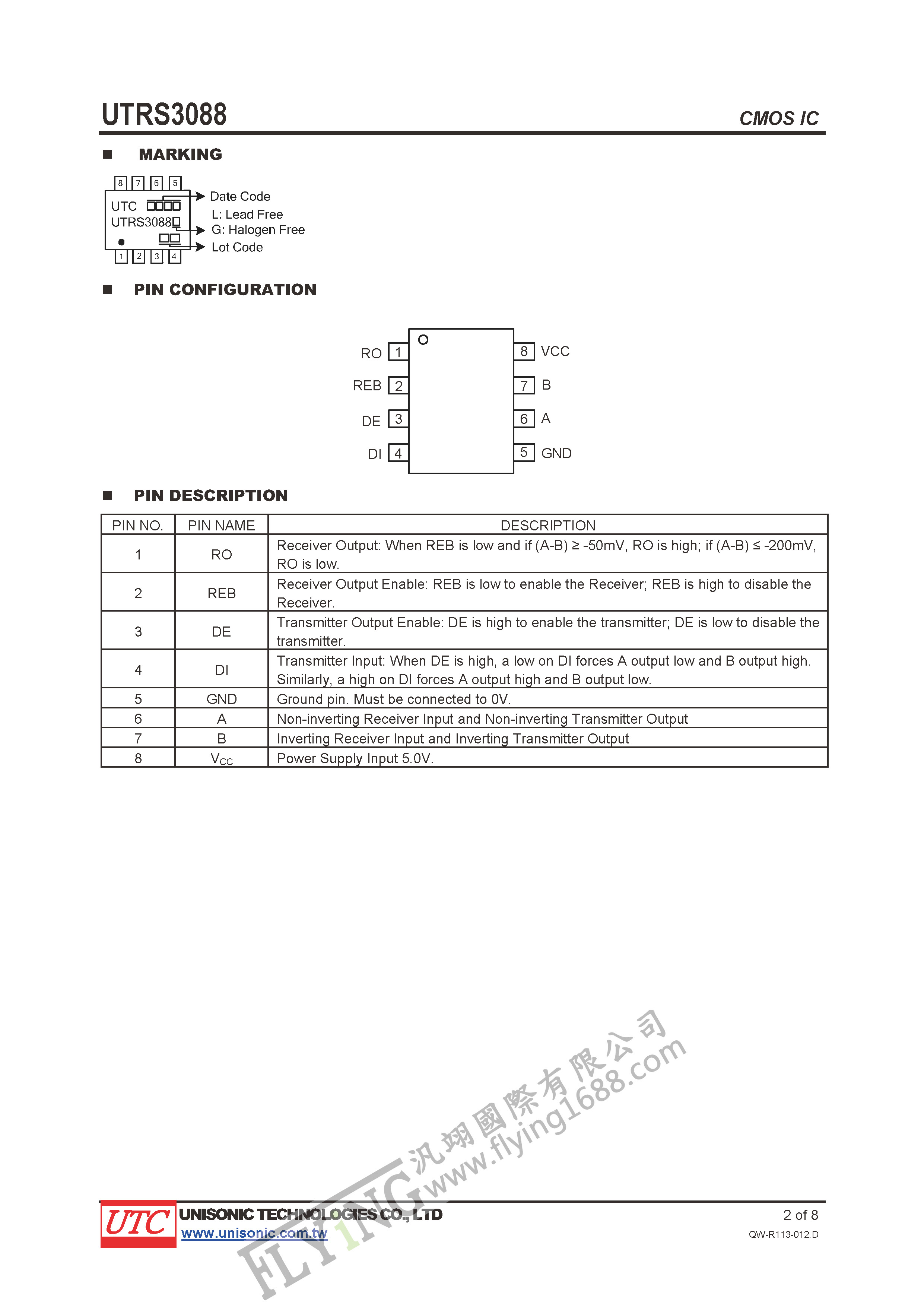

UTRS3088 CMOS IC
FAIL-SAFE, 1.0MBPS, RS-485 /RS-422 TRANSCEIVERS WITH ±15KV ESD-PROTECTED
DESCRIPTION
The UTC UTRS3088 is a half-duplex transceiver designed for RS-485 data bus network, which contains one transmitter and one receiver. The UTC UTRS3088 features a fail-safe receiver, which guarantees the receiver to output high when the receiver inputs are open, short or idle.
The UTC UTRS3088 also features a hot-swap glitch free protection circuits which guarantee outputs of both the transmitter and the receiver in a high impedance state during the power up period. So that the large short current from power to ground will be disable by glitch free function, which will save the power and enhance the efficiency of the power up.
The UTC UTRS3088 is optimized for signal rates up to 1.0Mbps with differential voltage of 2.3V. The UTC UTRS3088 also has the thermal shutdown function when the temperature is over 150℃ and the protection of the current limitation in the transmitter to protect the itself from the damage by the system-fault conditions during normal operation.
FEATURES
UTRS3088 CMOS集成電路
具有 ±15KV ESD 保護的故障安全、1.0MBPS、RS-485 /RS-422 收發器
描述
UTC UTRS3088 是一款專為 RS-485 數據總線網絡設計的半雙工收發器，包含一個發送器和一個接收器。 UTC UTRS3088 具有故障安全接收器，可確保接收器在接收器輸入開路、短路或空閒時輸出高電平。
UTC UTRS3088 還具有熱插拔無毛刺保護電路，可確保發射器和接收器的輸出在上電期間處於高阻抗狀態。使電源到地的大短路電流被無干擾功能禁用，從而節省電源並提高上電效率。
UTC UTRS3088 針對高達 1.0Mbps 的信號速率進行了優化，差分電壓為 2.3V。 UTC UTRS3088 還具有溫度超過 150℃時的熱關斷功能和發射器限流保護功能，以保護自身在正常工作時免受系統故障條件的損壞。
特徵
FAIL-SAFE, 1.0MBPS, RS-485 /RS-422 TRANSCEIVERS WITH ±15KV ESD-PROTECTED
DESCRIPTION
The UTC UTRS3088 is a half-duplex transceiver designed for RS-485 data bus network, which contains one transmitter and one receiver. The UTC UTRS3088 features a fail-safe receiver, which guarantees the receiver to output high when the receiver inputs are open, short or idle.
The UTC UTRS3088 also features a hot-swap glitch free protection circuits which guarantee outputs of both the transmitter and the receiver in a high impedance state during the power up period. So that the large short current from power to ground will be disable by glitch free function, which will save the power and enhance the efficiency of the power up.
The UTC UTRS3088 is optimized for signal rates up to 1.0Mbps with differential voltage of 2.3V. The UTC UTRS3088 also has the thermal shutdown function when the temperature is over 150℃ and the protection of the current limitation in the transmitter to protect the itself from the damage by the system-fault conditions during normal operation.
FEATURES
- Meet the requirements of the EIA/TIA-485 standards.
- 5.0V single power supply.
- 1μA low-current shutdown mode.
- HBM ±15kV ESD protection for Transmitter Output
- True fail-safe receiver while maintaining EIA/TIA-485 compatibility.
- Hot-Swap glitch free protection on control inputs.
- Up to 256 transceivers on the bus.
- Maximum baud rate up to 1.0Mbps.
- Transmitter short circuit current limit.
- Thermal shutdown for overload protection.
UTRS3088 CMOS集成電路
具有 ±15KV ESD 保護的故障安全、1.0MBPS、RS-485 /RS-422 收發器
描述
UTC UTRS3088 是一款專為 RS-485 數據總線網絡設計的半雙工收發器，包含一個發送器和一個接收器。 UTC UTRS3088 具有故障安全接收器，可確保接收器在接收器輸入開路、短路或空閒時輸出高電平。
UTC UTRS3088 還具有熱插拔無毛刺保護電路，可確保發射器和接收器的輸出在上電期間處於高阻抗狀態。使電源到地的大短路電流被無干擾功能禁用，從而節省電源並提高上電效率。
UTC UTRS3088 針對高達 1.0Mbps 的信號速率進行了優化，差分電壓為 2.3V。 UTC UTRS3088 還具有溫度超過 150℃時的熱關斷功能和發射器限流保護功能，以保護自身在正常工作時免受系統故障條件的損壞。
特徵
- 符合EIA/TIA-485標準的要求。
- 5.0V單電源。
- 1μA 低電流關斷模式。
- 發送器輸出的 HBM ±15kV ESD 保護
- 真正的故障安全接收器，同時保持 EIA/TIA-485 兼容性。
- 控制輸入上的熱插拔無故障保護。
- 總線上多達 256 個收發器。
- 最大波特率可達 1.0Mbps。
- 變送器短路電流限制。
- 過載保護的熱關斷。
