CMOS IC UPA2008G-N24-R HTSSOP-24
| 附件下載 | |
| 商品名稱 | CMOS IC |
| 訂購數量 | |
| 依數量訂價 | NTD |
| FLYiNG 零件編號 | ICUPA2008GN24RUTC |
| FLYiNG 庫存現貨 | 20 |
| 製造商 | UTC |
| 製造商零件編號 | UPA2008G-N24-R |
| 說明 | CMOS IC UPA2008G-N24-R HTSSOP-24 |
| 無鉛狀態 / RoHS 指令狀態 | RoHS / Halogen Free |
| 電壓比較器 Voltage Comparator | DUAL 250mW AUDIO POWER AMPLIFIER WITH SHUTDOWN MODE |
| 製造商 | UTC |
| 系列 | UPA2008 |
| 原廠料號 | UPA2008G-N24-R |
| 電源電壓 | 4.5~5.5V |
| 工作溫度 | -40~85°C |
| 封裝／外殼 | HTSSOP-24 |
| 安裝類型 | SMD 表面黏著式 |
| 無鉛狀態 RoHS | RoHS / Halogen Free |
| 標準包裝數量 | 2500/Reel Tape Reel 捲裝 |
UPA2008 CMOS IC

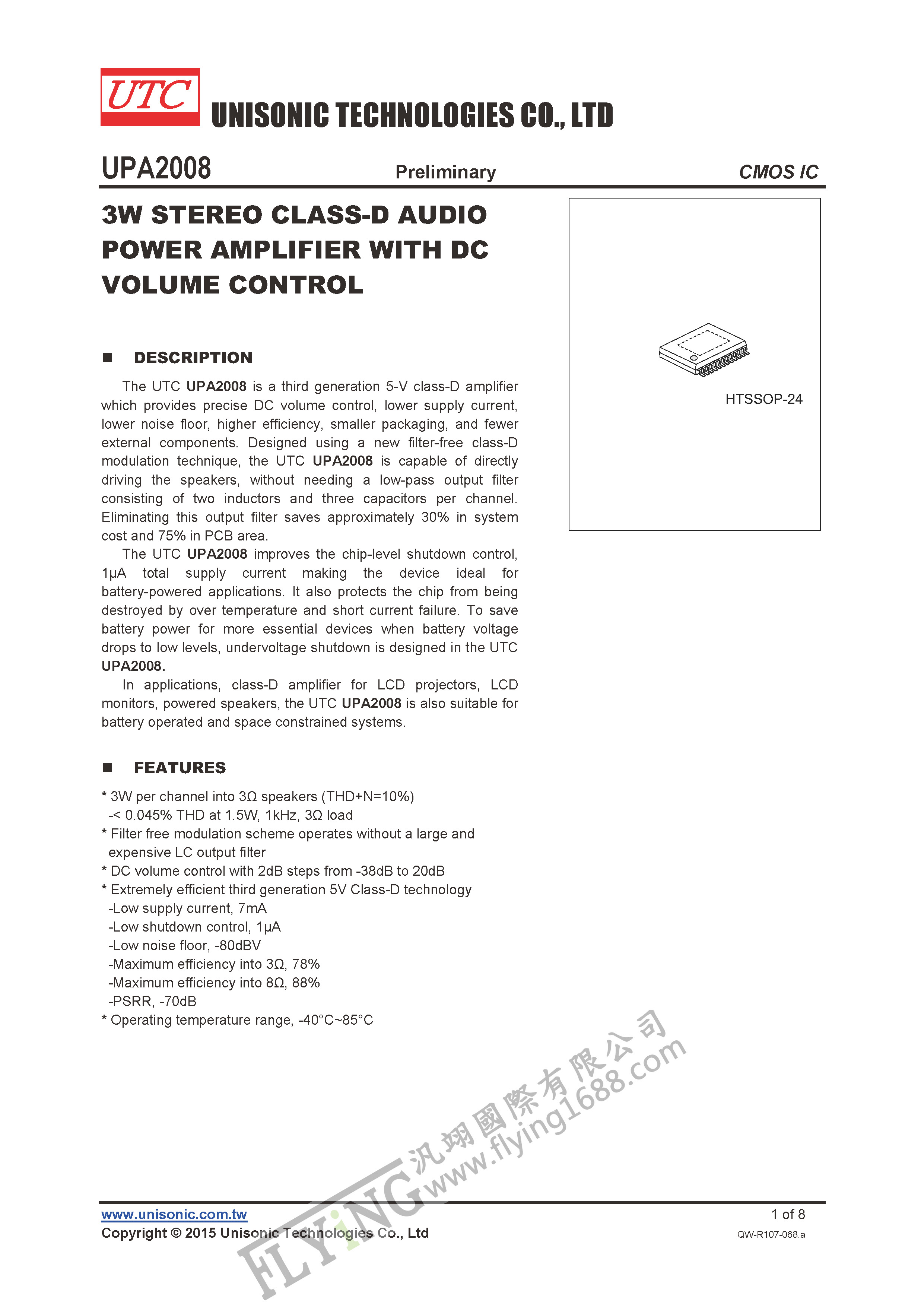

3W STEREO CLASS-D AUDIO POWER AMPLIFIER WITH DC VOLUME CONTROL
DESCRIPTION
The UTC UPA2008 is a third generation 5-V class-D amplifier which provides precise DC volume control, lower supply current, lower noise floor, higher efficiency, smaller packaging, and fewer external components. Designed using a new filter-free class-D modulation technique, the UTC UPA2008 is capable of directly driving the speakers, without needing a low-pass output filter consisting of two inductors and three capacitors per channel.
Eliminating this output filter saves approximately 30% in system cost and 75% in PCB area.
The UTC UPA2008 improves the chip-level shutdown control, 1μA total supply current making the device ideal for battery-powered applications. It also protects the chip from being destroyed by over temperature and short current failure. To save battery power for more essential devices when battery voltage drops to low levels, undervoltage shutdown is designed in the UTC UPA2008.
In applications, class-D amplifier for LCD projectors, LCD monitors, powered speakers, the UTC UPA2008 is also suitable for battery operated and space constrained systems.
FEATURES
UPA2008 CMOS IC
帶直流音量控制的 3W 立體聲 D 類音頻功率放大器
說明
UTC UPA2008 是第三代 5V D 類放大器，可提供精確的直流音量控制、更低的電源電流、更低的本底噪聲、更高的效率、更小的封裝和更少的外部組件。 UTC UPA2008 採用新的無濾波器 D 類調製技術設計，能夠直接驅動揚聲器，無需每個通道由兩個電感器和三個電容器組成的低通輸出濾波器。
取消此輸出濾波器可節省大約 30% 的系統成本和 75% 的 PCB 面積。
UTC UPA2008 改進了芯片級關斷控制，1μA 總電源電流使該器件非常適合電池供電應用。它還可以保護芯片免受過熱和短路電流故障的破壞。為了在電池電壓降至低電平時為更重要的設備節省電池電量，UTC UPA2008 中設計了欠壓關斷功能。
在 LCD 投影儀、LCD 顯示器、有源揚聲器的 D 類放大器應用中，UTC UPA2008 也適用於電池供電和空間受限的系統。
特徵
3W STEREO CLASS-D AUDIO POWER AMPLIFIER WITH DC VOLUME CONTROL
DESCRIPTION
The UTC UPA2008 is a third generation 5-V class-D amplifier which provides precise DC volume control, lower supply current, lower noise floor, higher efficiency, smaller packaging, and fewer external components. Designed using a new filter-free class-D modulation technique, the UTC UPA2008 is capable of directly driving the speakers, without needing a low-pass output filter consisting of two inductors and three capacitors per channel.
Eliminating this output filter saves approximately 30% in system cost and 75% in PCB area.
The UTC UPA2008 improves the chip-level shutdown control, 1μA total supply current making the device ideal for battery-powered applications. It also protects the chip from being destroyed by over temperature and short current failure. To save battery power for more essential devices when battery voltage drops to low levels, undervoltage shutdown is designed in the UTC UPA2008.
In applications, class-D amplifier for LCD projectors, LCD monitors, powered speakers, the UTC UPA2008 is also suitable for battery operated and space constrained systems.
FEATURES
- 3W per channel into 3Ω speakers (THD+N=10%)
-< 0.045% THD at 1.5W, 1kHz, 3Ω load - Filter free modulation scheme operates without a large and expensive LC output filter
- DC volume control with 2dB steps from -38dB to 20dB
- Extremely efficient third generation 5V Class-D technology
-Low supply current, 7mA
-Low shutdown control, 1μA
-Low noise floor, -80dBV
-Maximum efficiency into 3Ω, 78%
-Maximum efficiency into 8Ω, 88%
-PSRR, -70dB - Operating temperature range, -40°C~85°C

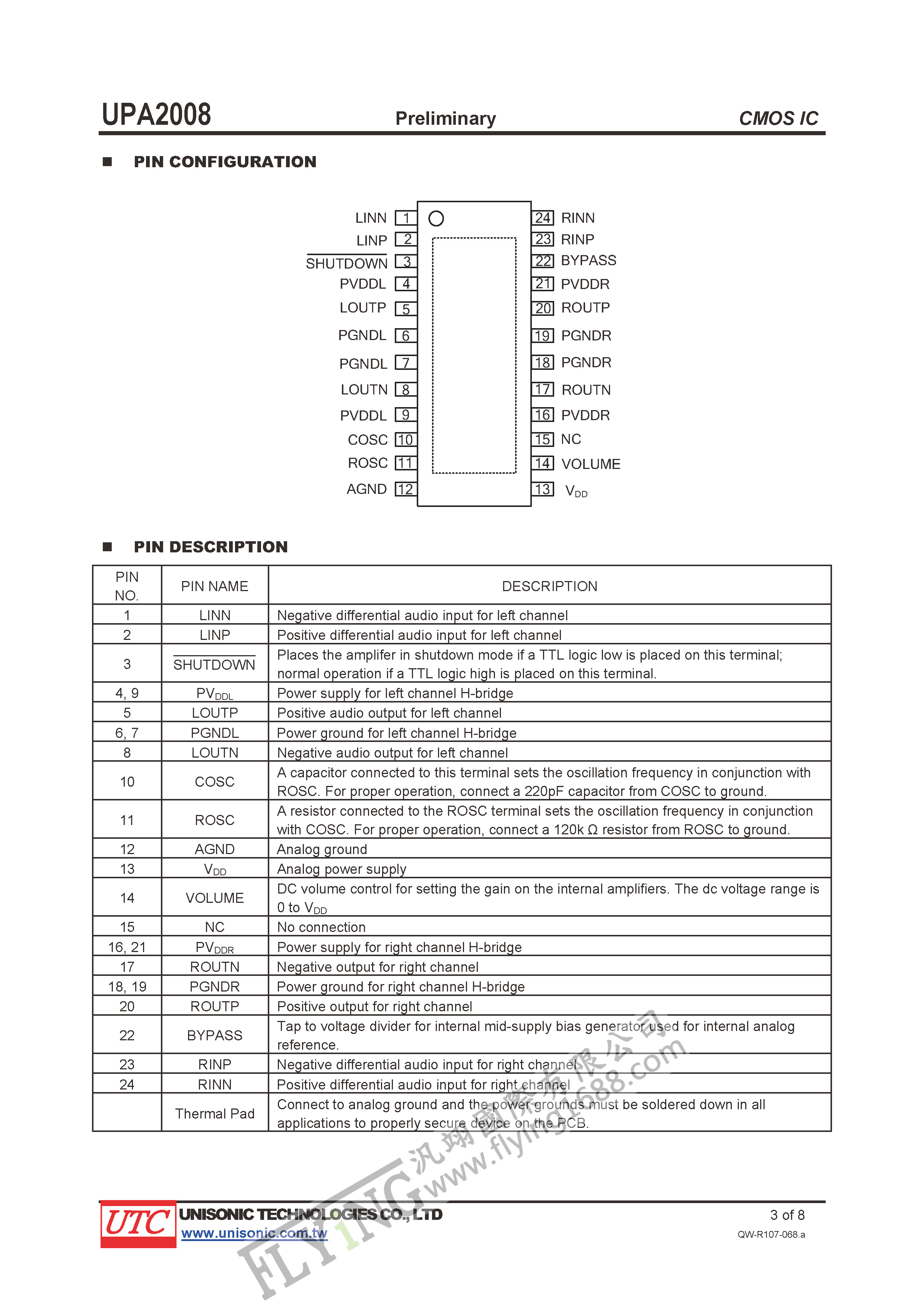

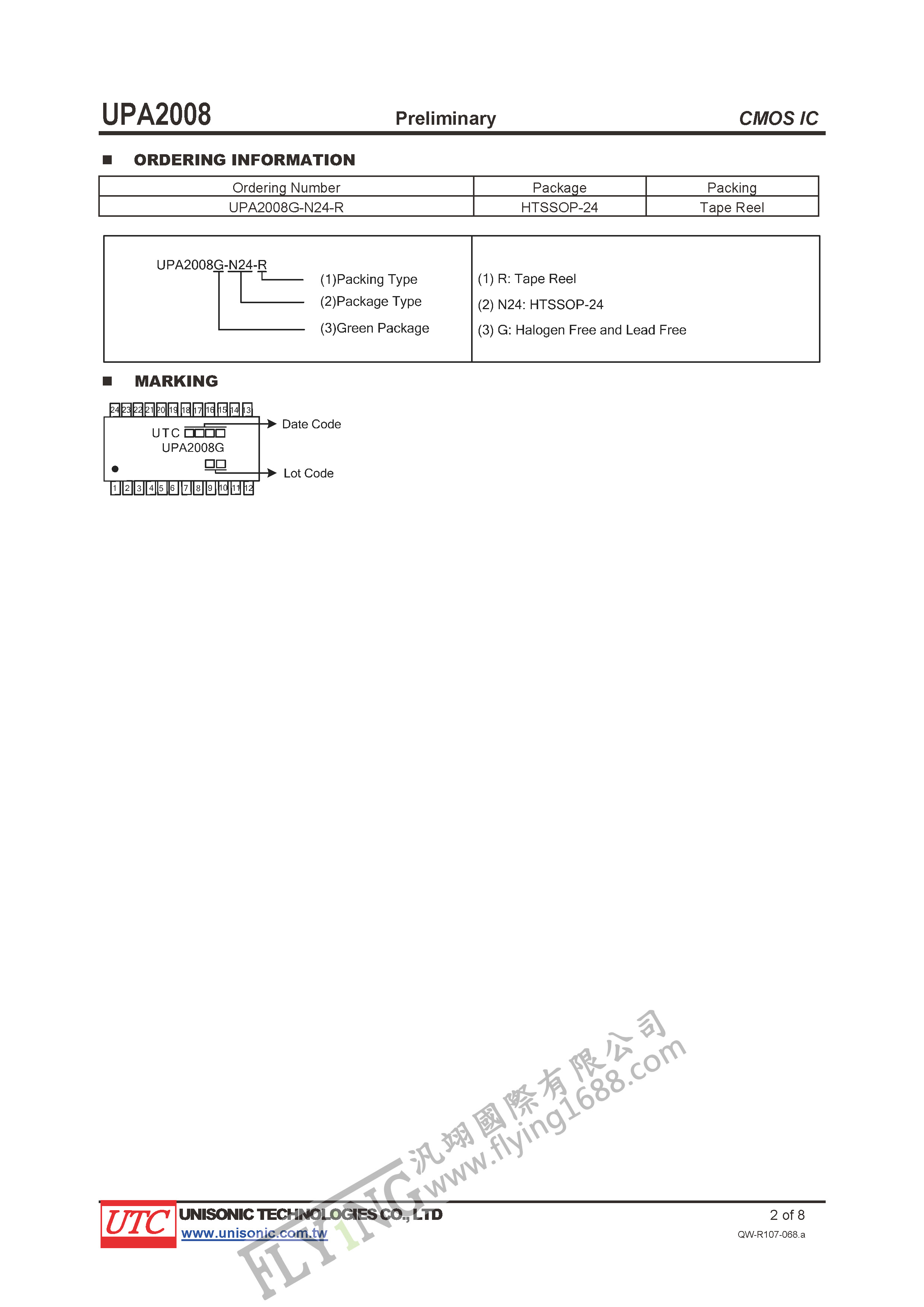

UPA2008 CMOS IC
帶直流音量控制的 3W 立體聲 D 類音頻功率放大器
說明
UTC UPA2008 是第三代 5V D 類放大器，可提供精確的直流音量控制、更低的電源電流、更低的本底噪聲、更高的效率、更小的封裝和更少的外部組件。 UTC UPA2008 採用新的無濾波器 D 類調製技術設計，能夠直接驅動揚聲器，無需每個通道由兩個電感器和三個電容器組成的低通輸出濾波器。
取消此輸出濾波器可節省大約 30% 的系統成本和 75% 的 PCB 面積。
UTC UPA2008 改進了芯片級關斷控制，1μA 總電源電流使該器件非常適合電池供電應用。它還可以保護芯片免受過熱和短路電流故障的破壞。為了在電池電壓降至低電平時為更重要的設備節省電池電量，UTC UPA2008 中設計了欠壓關斷功能。
在 LCD 投影儀、LCD 顯示器、有源揚聲器的 D 類放大器應用中，UTC UPA2008 也適用於電池供電和空間受限的系統。
特徵
- 每聲道 3W 至 3Ω 揚聲器 (THD+N=10%)
-< 0.045% THD at 1.5W, 1kHz, 3Ω 負載 - 無濾波器調製方案無需大型且昂貴的 LC 輸出濾波器即可運行
- DC 音量控制，從 -38dB 到 20dB，步進為 2dB
- 極其高效的第三代 5V D 類技術
- 低電源電流，7mA
-低停機控制，1μA
- 低本底噪聲，-80dBV
- 最大效率到 3Ω, 78%
- 8Ω 時的最大效率，88%
-PSRR，-70dB - 工作溫度範圍，-40°C~85°C
