FLYiNG 零件編號 | ZDSSMA2EZ8.2D5GW |
FLYiNG 庫存現貨 | 30 |
製造商 | GW |
製造商零件編號 | SMA2EZ8.2D5 |
說明 | Zener Diodes 齊納二極管 1W 8.2V SMA |
無鉛狀態 / RoHS 指令狀態 | RoHS |
訂購數量 | NTD 單價 / PCS |
1~9 | 9 |
10~99 | 7 |
二極體 | Zener Diode 齊納二極管 |
製造商 | GW |
系列 | SMA2EZxxD5 SERIES |
原廠料號 | SMA2EZ8.2D5 |
說明 | Zener Diodes 齊納二極管 1W 8.2V SMA |
功率 | 2W |
Vz - Zener 電壓 | 8.2V |
電流 - 逆向漏電 @ Vr | 5uA @6V |
溫度範圍 | -55°C to +175°C |
封裝/外殼 | SMA/DO214AC |
安裝類型 | SMD 表面黏著式 |
無鉛狀態 | RoHS |
標準包裝數量 | 5000/REEL 捲軸 |

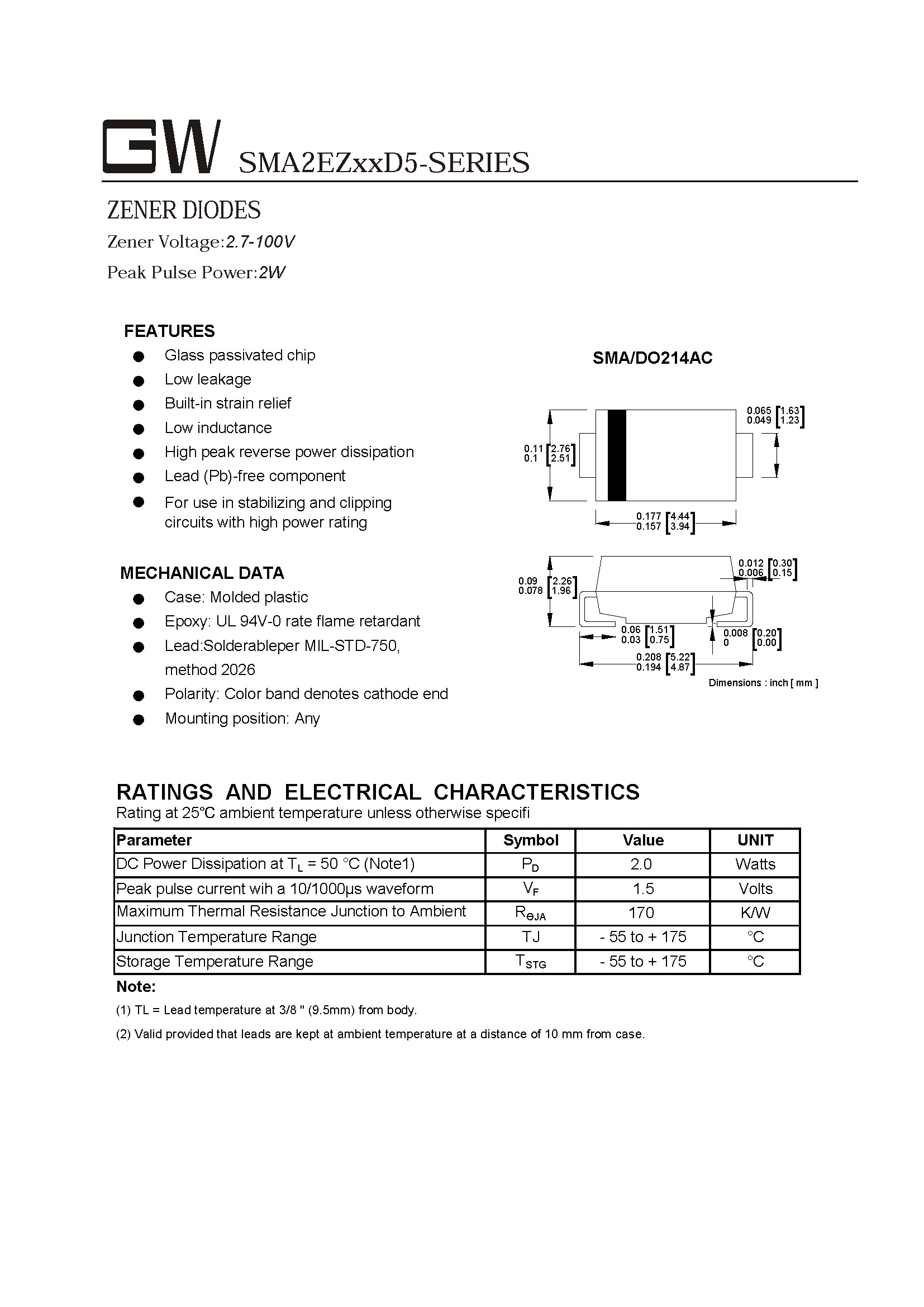

SMA2EZxxD5-SERIES ZENER DIODES
Zener Voltage:2.7-100V
Peak Pulse Power:2W
FEATURES
SMA2EZxxD5-系列 齊納二極管
齊納電壓:2.7-100V
峰值脈衝功率:2W
特徵
Zener Voltage:2.7-100V
Peak Pulse Power:2W
FEATURES
- Glass passivated chip
- Low leakage
- Built-in strain relief
- Low inductance
- High peak reverse power dissipation
- Lead (Pb)-free component
- For use in stabilizing and clipping circuits with high power rating
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Lead:Solderableper MIL-STD-750,method 2026
- Polarity: Color band denotes cathode end
- Mounting position: Any
SMA2EZxxD5-系列 齊納二極管
齊納電壓:2.7-100V
峰值脈衝功率:2W
特徵
- 玻璃鈍化芯片
- 低洩漏
- 內置應力消除
- 低電感
- 高峰值反向功耗
- 無鉛 (Pb) 組件
- 用於高額定功率的穩定和削波電路
- 外殼:模壓塑料
- 環氧樹脂:UL 94V-0 級阻燃
- 鉛:Solderableper MIL-STD-750,method 2026
- 極性:色帶錶示陰極端
- 安裝位置:任意
