圖片僅供參考
快速熔斷玻璃管保險絲 2A 250V 5X20 安規
| 附件下載 | |
| 商品名稱 | Fast Acting Glass Tube Fuse Series |
| 訂購數量 | |
| 依數量訂價 | 12 NTD |
| FLYiNG 零件編號 | FUSEGFE002 |
| FLYiNG 庫存現貨 | 1,010 |
| 製造商 | CONQUER |
| 製造商零件編號 | GFE002 |
| 說明 | 快速熔斷玻璃管保險絲 2A 250V 5X20 安規 |
| 無鉛狀態 / RoHS 指令狀態 | RoHS |
| 訂購數量 | NTD 單價 / PCS |
| 1~9 | 12 |
| 10~99 | 9 |
| 100~999 | 6 |
| 1000~ | 3 |
| 類別 | 保險絲 |
| 產品 | 快速熔斷玻璃管保險絲 |
| 製造商 | CONQUER |
| 系列 | GFE |
| 原廠料號 | GFE002 |
| 說明 | 快速熔斷玻璃管保險絲 2A 250V 5X20 安規 |
| 額定電流 | 2A |
| 電壓 | 250V |
| 熔斷類型 | 快斷 |
| 安規 | UL CSA PSE |
| 工作溫度 | -55°C to +125°C Operating Temperature |
| 封裝／外殼 | 5.2ØX20mm |
| 安裝類型 | 手插件 |
| 無鉛狀態 | RoHS |
| 備註 | 可搭配保險絲夾 FC-501-V1 |
| 標準包裝數量 | 1000/BOX |

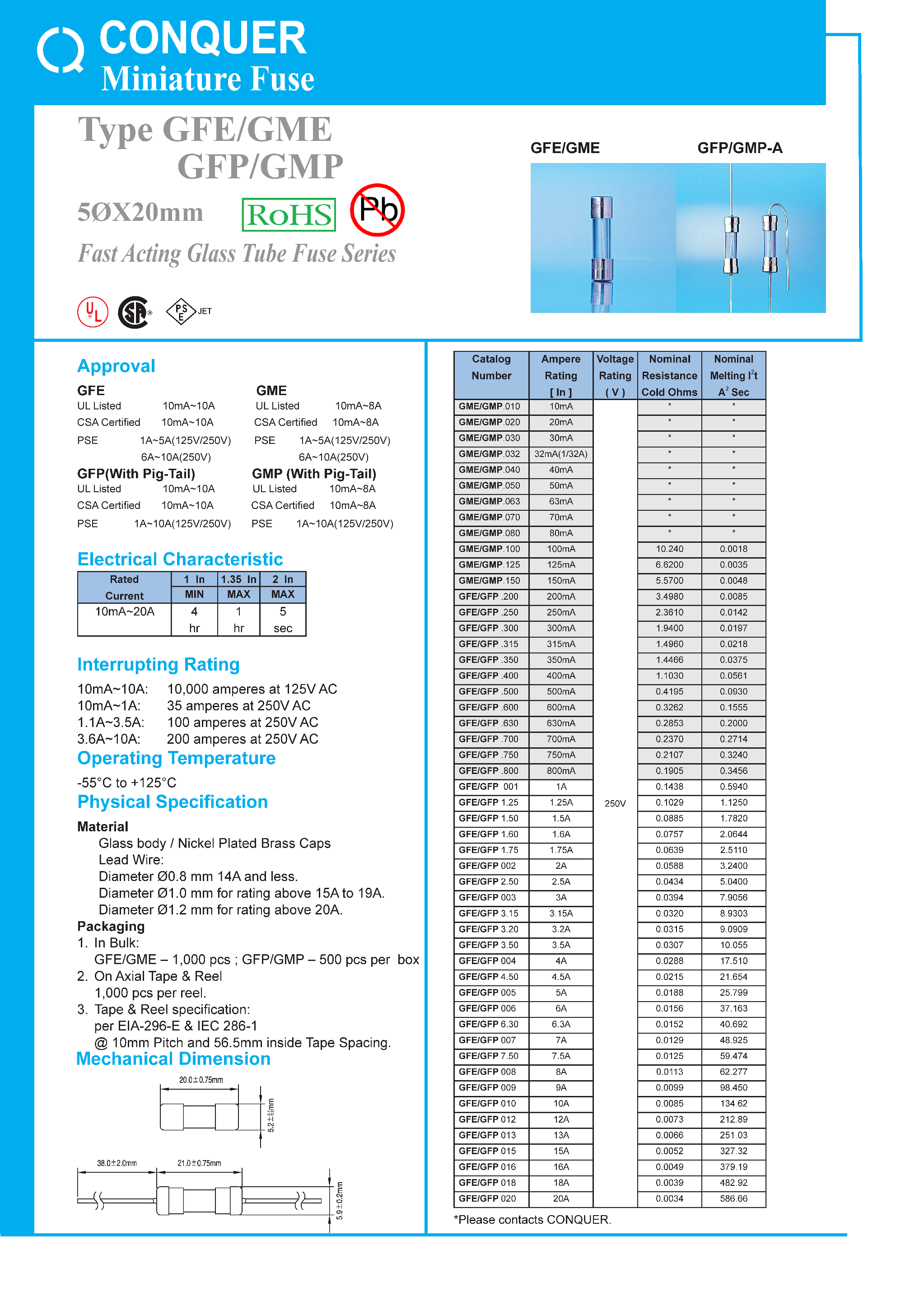

Miniature Fuse
Type GFE/GME GFP/GMP
5ØX20mm
Fast Acting Glass Tube Fuse Series
Interrupting Rating
10mA~10A: 10,000 amperes at 125V AC
10mA~1A: 35 amperes at 250V AC
1.1A~3.5A: 100 amperes at 250V AC
3.6A~10A: 200 amperes at 250V AC
Operating Temperature
-55°C to +125°C
Physical Specification
Material
Glass body / Nickel Plated Brass Caps
Lead Wire:
Diameter Ø0.8 mm 14A and less.
Diameter Ø1.0 mm for rating above 15A to 19A.
Diameter Ø1.2 mm for rating above 20A.
Packaging
1. In Bulk:
GFE/GME – 1,000 pcs ; GFP/GMP – 500 pcs per box
2. On Axial Tape & Reel
1,000 pcs per reel.
3. Tape & Reel specification:
per EIA-296-E & IEC 286-1
@ 10mm Pitch and 56.5mm inside Tape Spacing.
Type GFE/GME GFP/GMP
5ØX20mm
Fast Acting Glass Tube Fuse Series
Interrupting Rating
10mA~10A: 10,000 amperes at 125V AC
10mA~1A: 35 amperes at 250V AC
1.1A~3.5A: 100 amperes at 250V AC
3.6A~10A: 200 amperes at 250V AC
Operating Temperature
-55°C to +125°C
Physical Specification
Material
Glass body / Nickel Plated Brass Caps
Lead Wire:
Diameter Ø0.8 mm 14A and less.
Diameter Ø1.0 mm for rating above 15A to 19A.
Diameter Ø1.2 mm for rating above 20A.
Packaging
1. In Bulk:
GFE/GME – 1,000 pcs ; GFP/GMP – 500 pcs per box
2. On Axial Tape & Reel
1,000 pcs per reel.
3. Tape & Reel specification:
per EIA-296-E & IEC 286-1
@ 10mm Pitch and 56.5mm inside Tape Spacing.
