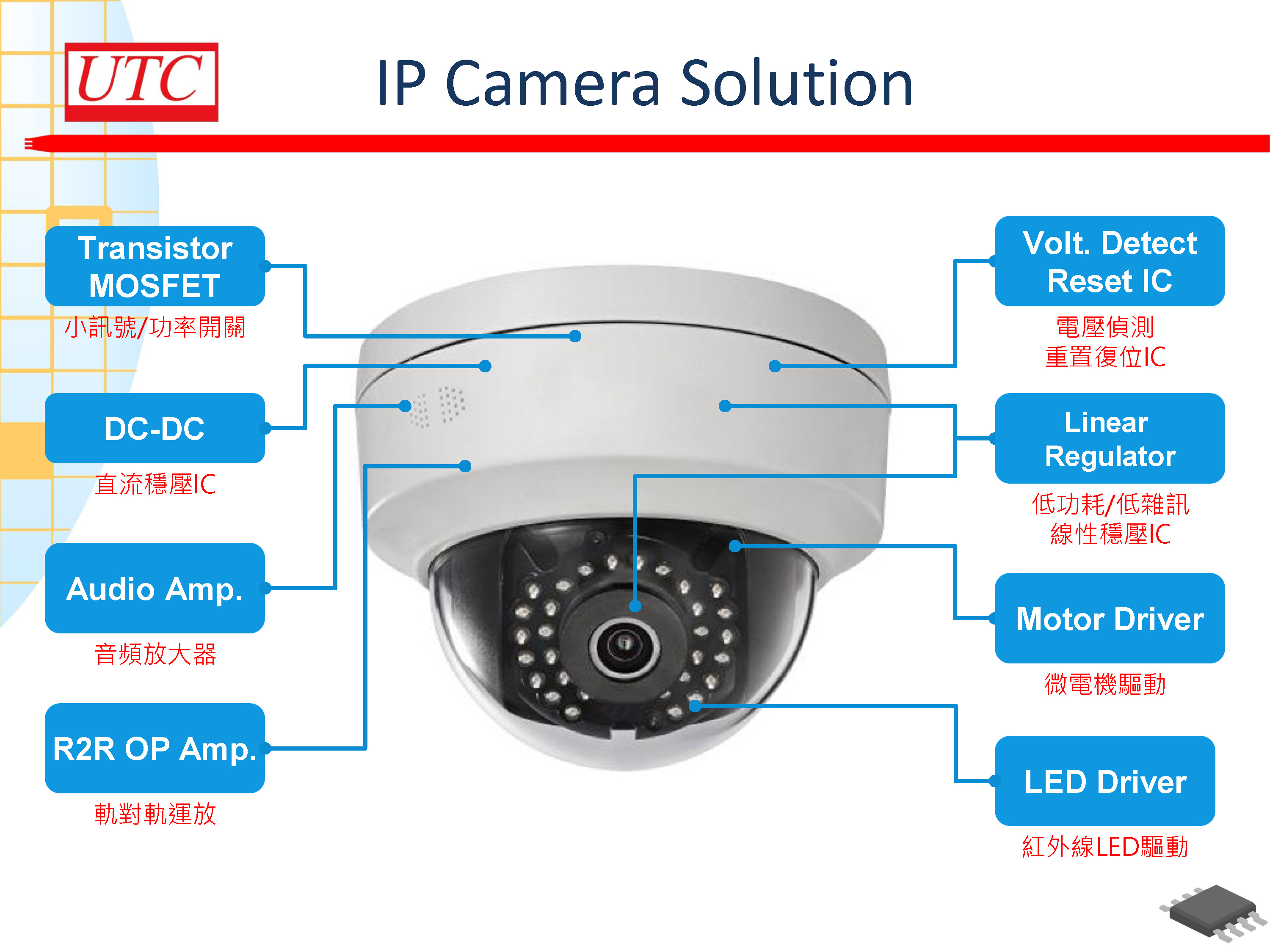

UTC 網路監視器 IP Camera應用​

在設計 IP Camera 時，最常遇到的挑戰就是 穩定供電、訊號完整與系統可靠性。
UTC 針對 IP Camera，提供了一套完整的元件組合，從電源管理到驅動器，直接對應攝影機設計的每個環節。

低靜態電流 LDO (Low IQ LDO)
讓攝影機在待機模式下也能有效降低功耗，同時維持輸出穩定。像 UR56XX、UR76XX，就能在 18V/36V 輸入下，提供 500mA 輸出，靜態電流僅幾微安。

DC/DC 轉換器
面對不同模組電壓需求，UTC 提供高效率 Buck 與 Boost 解決方案，讓核心晶片、感測器與網路模組都有乾淨且充足的電源。

驅動器 (Driver IC)
從雲台馬達到夜視 LED 照明，UTC 提供完整的驅動解決方案，例如 BA6208、UMD911x 系列，確保鏡頭旋轉與夜拍照明穩定可靠。

多樣封裝
從 SOT-23、SOT-89 到 DFN，方便應用在高密度、小型化的攝影機 PCB 版型。

結合這些元件，工程師能更快完成 IP Camera 的設計與量產，縮短開發週期，同時確保效能與可靠度。

Linear Regulator
低功耗/低雜訊線性穩壓IC
Category Part No. Description Package
Low IQ LDO UR56XX 18VIN, 500mA, 1.5~12VOUT, Low IQ (1.0~5.0uA) SOT-89, SOT-23-3
SOT-23-5,TO-92
Low IQ LDO UR76XX 36VIN, 500mA, 1.5~12VOUT, Low IQ (1.0~3.0uA) SOT-89, SOT-23-3 SOT-23, SOT-23-5, TO-92
High PSRR LDO UR6223 6.0VIN , 300mA, 1.2~4.0V Fixed Output, 70~80dB PSRR, Inrush Current Protection SOT-25, DFN1010-4
Low Noise LDO LR9113 6.0VIN , 300mA, 1.1~3.3V Fixed Output, 65dB PSRR, 30μVrms eN SOT-25, SOT-23-5, DFN1010-4
Low Noise LDO LR9102 6.0VIN , 300mA, 1.0~3.6V Fixed Output, 75dB PSRR, 30μVrms eN SOT-23-3, SOT-23-5, SOT-353 SOT-25, DFN1616-6, DFN1820-6
Low Noise LDO L1138B 6.5VIN , 800mA, 1.2~5.0V Fixed Output, 70~80dB PSRR SOT-89-5, SOT-25, SOP-8
Low Drop LDO LR1106 8.0VIN , 400mA, 1.5~5.0V Fixed Output, 30uA Supply Current, 0.4V@200mA VDrop SOT-89, SOT-23, SOT-25 SOP-8, DFN1820-6
Volt. Detect Reset IC
電壓偵測重置復位IC
Category Part No. Description Package
Reset & Watch Dog UWD817 1.0~5.5VIN, 2.63~4.65VDET, Low Active, Push-Pull, 210mS TDELAY, 1.7Sec. TWD SOT-25
MCU Supervisory UWD708 1.0~5.5VIN, 2.63~4.0VDET, H/L Active, Push-Pull, 200mS TDELAY, MR/FPI/FPO Function SOP-8
Reset IC 81C29G-P 0.7~10VIN, 2.9VDET, Low Active, Push-Pull, 1~50mS TDELAY SOT-89, SOT-223, SOT-23-3 SOT-23, TO-92
Reset IC UIC811-B 1.0~6.0VIN, 2.93VDET, Low Active, Push-Pull, 140~560mS TDELAY, MR Function SOT-23, SOT-23-3, SOT-143 SOT- 343
Motor Driver
微電機驅動
Category Part No. Description Package
Motor Driver UMD9111 5VCC, 9.6VDD, 1.5A IOUT_PEAK, Motor Driver SOP-8
Motor Driver UMD9112 5VCC, 6VDD, 2.5A IOUT_PEAK, Motor Driver SOP-8
Motor Driver UMD9113 5VCC, 7VDD, 3.5A IOUT_PEAK, Motor Driver DIP-8
Motor Driver UMD9114 5VDD, 550mA(MAX.), Motor Driver SOT-26
Motor Driver UMD9117 5VDD, 550mA(MAX.), Motor Driver SOT-26 DFN2020-8
(With sleep mode)
Motor Driver UMD9137 7VCC, 11VDD, 1.8A IOUT_PEAK, Motor Driver SOP-8, HSOP-8, DFN2020-8
Motor Driver BA6208 18VCC, 500mA(MAX.), Reversible Motor Driver DIP-8, SIP-9, SOP-8,
MSOP-8
Darlington Arrays ULN202 4 Channel, 30VIN, 50VOUT, 500mA, Darlington MSOP-10
Darlington Arrays ULN2003 7 Channel, 30VIN, 50VOUT, 500mA, Darlington DIP-16,SOP-16,TSSOP-16
Darlington Arrays ULN2004 7 Channel, 30VIN, 50VOUT, 500mA, Darlington DIP-16,SOP-16
Darlington Arrays ULN2803 8 Channel, 30VIN, 50VOUT, 500mA, Darlington DIP-18,SOP-18,SOP-20 TSOP-20,QFN-20(4×4)
Darlington Arrays ULN2084 8 Channel, 30VIN, 50VOUT, 500mA, Darlington DIP-18,SOP-18
R2R OP Amp.
軌對軌運放
Category Part No. Description Package
RRIO OP Amp. LV2462/LV2463 2.7~6.0VCC, Low Power, Dual Channel, 0.5~2mVOS, 80dB CMRR, 95dB PSRR, (LV2463 with SHDN) SOP-8, MSOP-8, MSOP-10
RRIO OP Amp. ULV8551 2.7~5.0VCC, Zero-Drift, Single Channel, 1~20μVOS, 120dB CMRR, 110dB PSRR SOP-8
RRO OP Amp. ULV2772 2.5~6.0VDD, High SR, Dual Channel, 0.44~2.7mVOS, 84dB CMRR, 89dB PSRR, 9V/μs SR SOP-8, TSSOP-8
RRO OP Amp. LV358 2.7~5.5VCC, Dual Channel, 1.7~7mVOS, 63dB CMRR, 60dB PSRR SOP-8, TSSOP-8, MSOP-8 DFN2030-8
LED Driver
紅外線LED驅動
Category Part No. Description Package
LED Driver L3060 5.0~30VIN, 500mA, Buck LED Driver, 1MHz Freq. with Dimming Function SOT-25
LED Driver L3080 5.0~30VIN, 800mA, Buck LED Driver, 1MHz Freq. with Dimming Function SOT-89-5
LED Driver L3010 4.5~40VIN, 1A, Buck LED Driver, 280KHz Freq. SOP-8
LED Driver L3012 6.0~36VIN, 1A, Buck LED Driver, 280KHz Freq. with Dimming Function SOP-8
LED Driver L4120 6.0~40VIN, 1.2A, Buck LED Driver, 1MHz Freq. with Dimming Function SOT-89-5
LED Driver L5104 2.5~5.5VIN, 1.4A ISW, Boost LED Driver, 1MHz Freq. with 33VOVP/PWM Dimming Function SOT-26
DC-DC
直流穩壓IC
Category Part No. Description Package
LV Buck Converter UD05122 2.5~5.5VIN, 1.2A, 0.6VFB ,1.4MHz Freq., 1.2ms TSS SOT-25
LV Buck Converter UD05151 3.0~5.5VIN, 1.5A, 0.6VFB ,1.5MHz Freq., 1.5ms TSS SOT-25
LV Buck Converter UD05158 2.7~5.5VIN, 1.5A, 0.6VFB ,1.5MHz Freq., 1.5ms TSS DFN2020-6
LV Buck Converter UD05205 2.5~5.5VIN, 2A, 0.6VFB ,1.5MHz Freq., LS Discharge SOT-25
LV Buck Converter UD05208 2.7~5.5VIN, 2A, 0.6VFB ,1.5MHz Freq., 50uA IQ SOT-25
LV Buck Converter UD05209 2.7~5.5VIN, 2A, 0.6VFB ,1.5MHz Freq., 250us TSS SOT-25
LV Buck Converter UD05251 2.6~5.5VIN, 2.5A, 0.6VFB ,1.2MHz Freq. HSOP-8, DFN3030-8
LV Buck Converter UD05303 3.0~5.5VIN, 3A, 0.6VFB ,1MHz Freq., with PG HSOP-8
MV Buck Converter UD16203 4.5~16VIN, 2A, 0.6VFB , 1.2MHz Freq., COT SOT-26
MV Buck Converter UD18203 4.5~18VIN, 2A, 0.6VFB , 500KHz Freq., COT SOT-26
MV Buck Converter UD18209 4.5~17VIN, 2A, 0.6VFB , 580KHz Freq., COT SOT-26
Category Part No. Description Package
Audio Amp. M4670 2.4~5.5VCC, 3W Mono Class D Audio Amplifier DFN3030-8
Audio Amp. DPA5V3F 2.4~5.5VCC, 2.8W Mono Class D Audio Amplifier SOP-8
​Transistor MOSFET
小訊號/功率開關
Category Part No. Description Package
Transistor MMBT3904 20VCEO, 700mA, NPN SOT-23, TO-92
Transistor 8050S 40VCEO, 200mA, NPN SOT-23, SOT-323, SOT-523 SOT-723
MOSFET 2N7002Z/ZW/ZT 60VDS, 300mA, N-MOSFET (with ESD Protect) SOT-23-3, SOT-323, SOT-523
MOSFET UT2301 -20VDS, -2.8A, P-MOSFET SOT-23, SOT-23-3, SOT-323
MOSFET UT2309 -30VDS, -3.7A, P-MOSFET SOT-23, SOT-23-3
MOSFET UT2308 20VDS, 2.7A, N-MOSFET SOT-23, SOT-23-3
MOSFET UT2316 30VDS, 3.6A, N-MOSFET SOT-23, SOT-23-3, SOT-223
