商品項目:15803
庫存現貨

圖片僅供參考
CD4001BE DIP-14 TI
附件下載
商品名稱 CMOS NOR Gates 邏輯 - 閘和反相器
訂購數量
依數量訂價
25 NTD
FLYiNG 零件編號 ICCD4001BETI
FLYiNG 庫存現貨 電洽/Contact
製造商 TEXAS INSTRUMENTS
製造商零件編號 CD4001BE
說明 CD4001BE DIP-14 TI
無鉛狀態 / RoHS 指令狀態 RoHS
訂購數量 NTD 單價 / PCS
1~9 25
10~99 20
100~999 15
1000~ 8
封裝/外殼 DIP-14
標準包裝數量 25/Tube,1000/Box 散裝

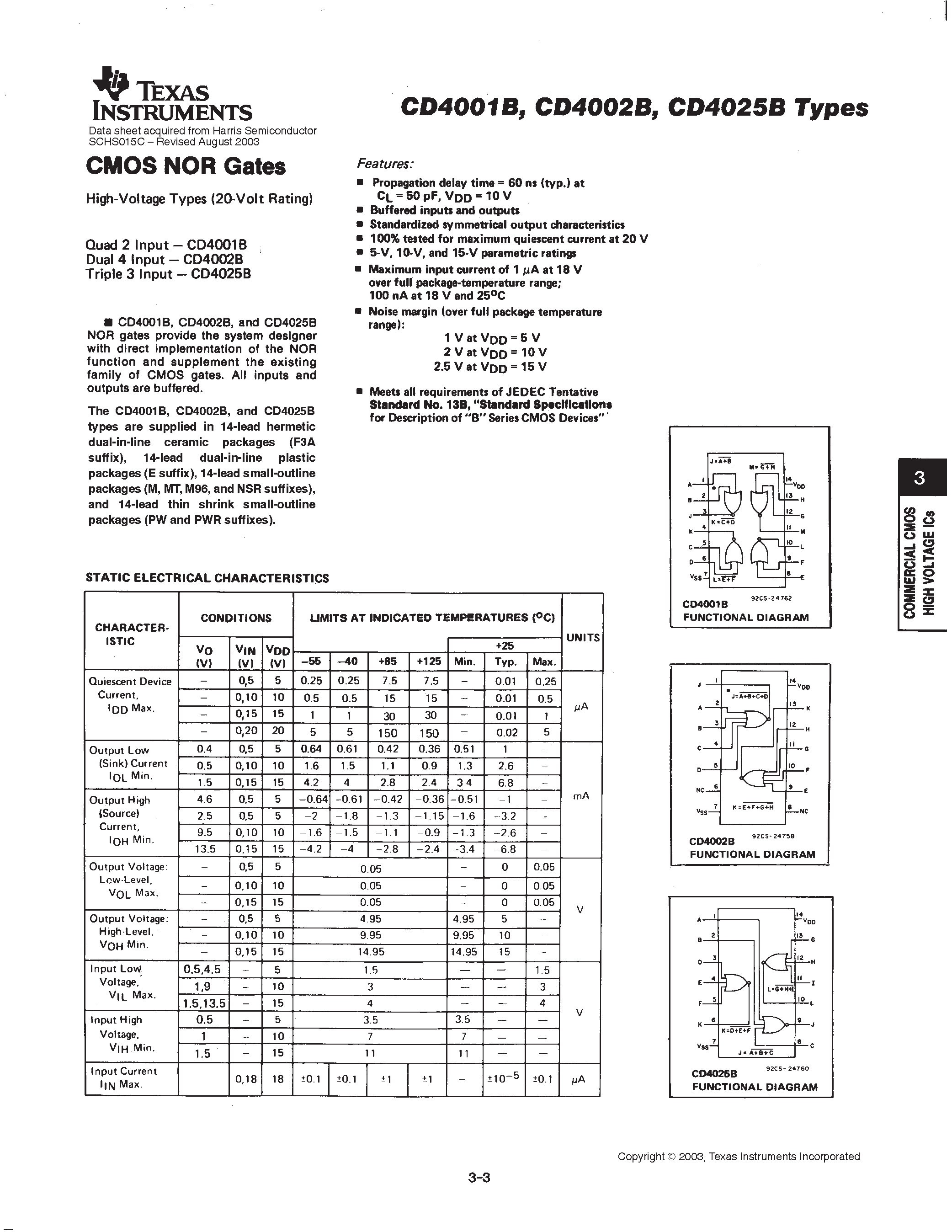

CMOS NOR Gates
High-Voltage Types (20-Volt Rating)
Quad 2 Input -CD4001B
Dual 4 Input -CD4002B
Triple 3 Input -CD4025B

CD4001B, CD4002B, and CD4025B NOR gates provide the system designer with direct implementation of the
NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.

The CD4001B, CD4002B, and CD4025B types are supplied in 14-lead hermetic dual-in-line ceramic packages
(F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages(M,MT,M96 and NSR
suffixes),and 14-lead thin shrink small-outline packages (PW and PWR suffixes).






德州儀器(TI)是一家全球性半導體設計和製造公司,

開發模擬集成電路和嵌入式處理器。

TI創建塑造技術的未來創新。
