圖片僅供參考
TVS SMBJ30A 600W SMB BRIGHTKING
| 附件下載 | |
| 商品名稱 | SMD 瞬態電壓抑制器 SMD Transient Voltage Suppressor |
| 訂購數量 | |
| 依數量訂價 | 12 NTD |
| FLYiNG 零件編號 | TVSSMBJ30AYAGEO |
| FLYiNG 散料庫存 | 電洽/Contact |
| FLYiNG 標準包裝庫存 | 電洽/Contact |
| 製造商/品牌商 | YAGEO / BRIGHTKING |
| 製造商/品牌商零件編號 | SMBJ30A |
| 說明 | TVS SMBJ30A 600W SMB BRIGHTKING |
| 無鉛狀態 / RoHS 指令狀態 | RoHS / Halogen Free |
| 散裝數量 | NTD 單價 / PCS |
| 1~9 | 12 |
| 10~99 | 8 |
| 500~ | 4 |
| 二極體 | SMD 瞬態電壓抑制器 SMD Transient Voltage Suppressor |
| 製造商 | YAGEO / BRIGHTKING |
| 系列 | SMBJ |
| 原廠料號 | SMBJ30A |
| 說明 | TVS SMBJ30A 600W SMB BRIGHTKING |
| 峰值功率 Peak power | 600W |
| 電壓 Voltage | 30V |
| Breakdown voltage Min (V) | 33.3V |
| Breakdown voltage Max (V) | 36.8V |
| Breakdown voltage IT (mA) | 1mA |
| 功耗 | 600 W |
| 誤差 | 5% |
| 通道 | 單向 |
| Device Marking Code | MK |
| 溫度範圍 | -55°C to +150°C |
| 封裝／外殼 | SMB/DO-214AA |
| 安裝類型 | SMD 表面黏著式 |
| 無鉛狀態 | RoHS / Halogen Free |
| 標準包裝數量 | 7” Reel=500/R 13” Reel=3000/R |

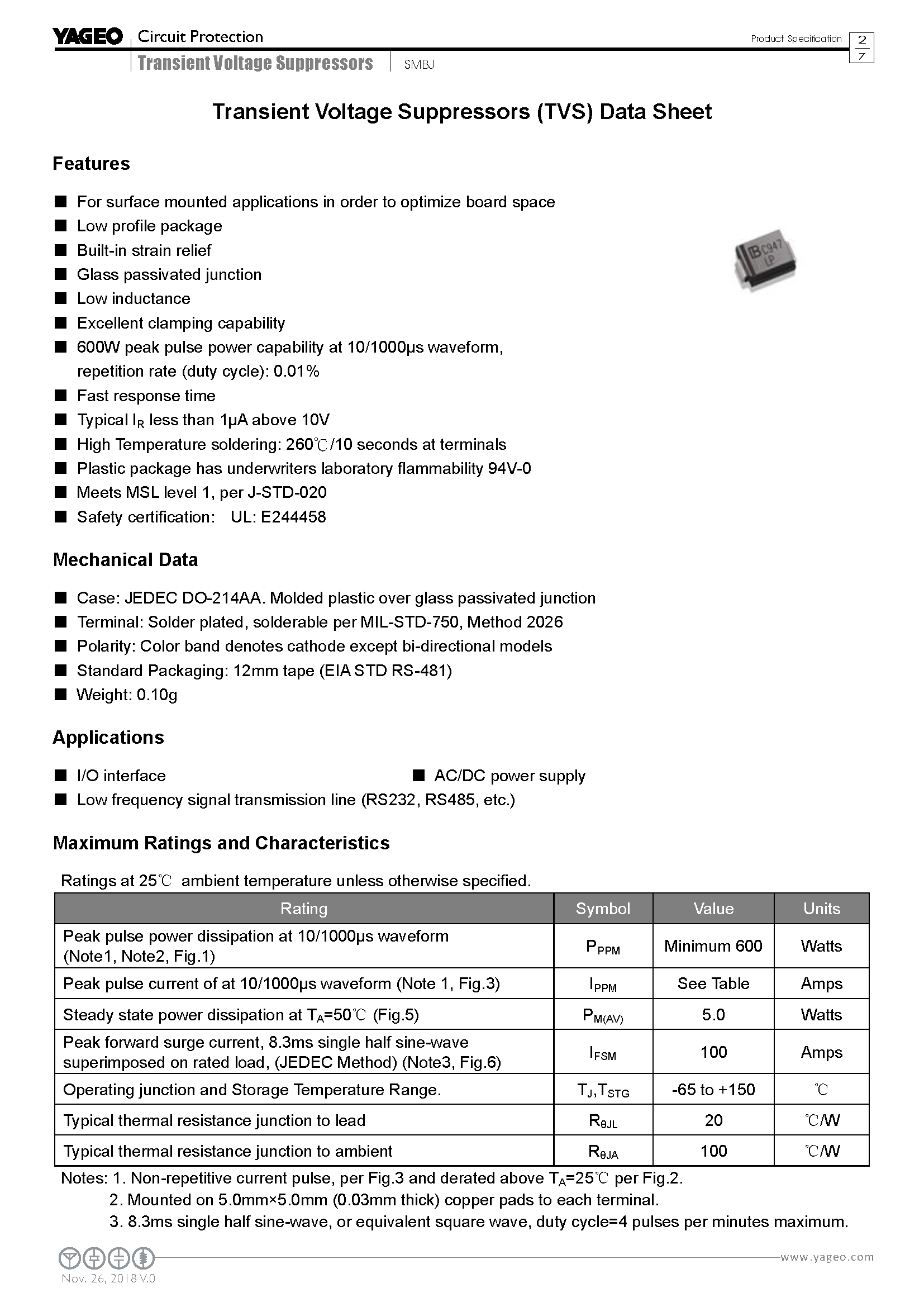

Features
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
600W peak pulse power capability at 10/1000μs waveform,repetition rate (duty cycle): 0.01%
Fast response time
Typical IR less than 1μA above 10V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Applications
I/O interface
AC/DC power supply
Low frequency signal transmission line (RS232, RS485, etc.)
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
600W peak pulse power capability at 10/1000μs waveform,repetition rate (duty cycle): 0.01%
Fast response time
Typical IR less than 1μA above 10V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Applications
I/O interface
AC/DC power supply
Low frequency signal transmission line (RS232, RS485, etc.)
