PMIC C6804A2E1QR-G SOP-8FD
附件下載
XC6804
TOREX SOT-25 PKG
商品名稱 One Cell Li-ion/Li-polymer Linear Charger IC with Battery Temperature Detection
訂購數量
依數量訂價
15 NTD
FLYiNG 零件編號 XC9141A50CMRG
FLYiNG 庫存現貨 10
製造商 TOREX
製造商零件編號 XC9141A50CMR-G
說明 PMIC C6804A2E1QR-G SOP-8FD
無鉛狀態 / RoHS 指令狀態 RoHS
訂購數量 NTD 單價 / PCS
1~9 15
10~99 10
封裝／外殼 SOP-8FD

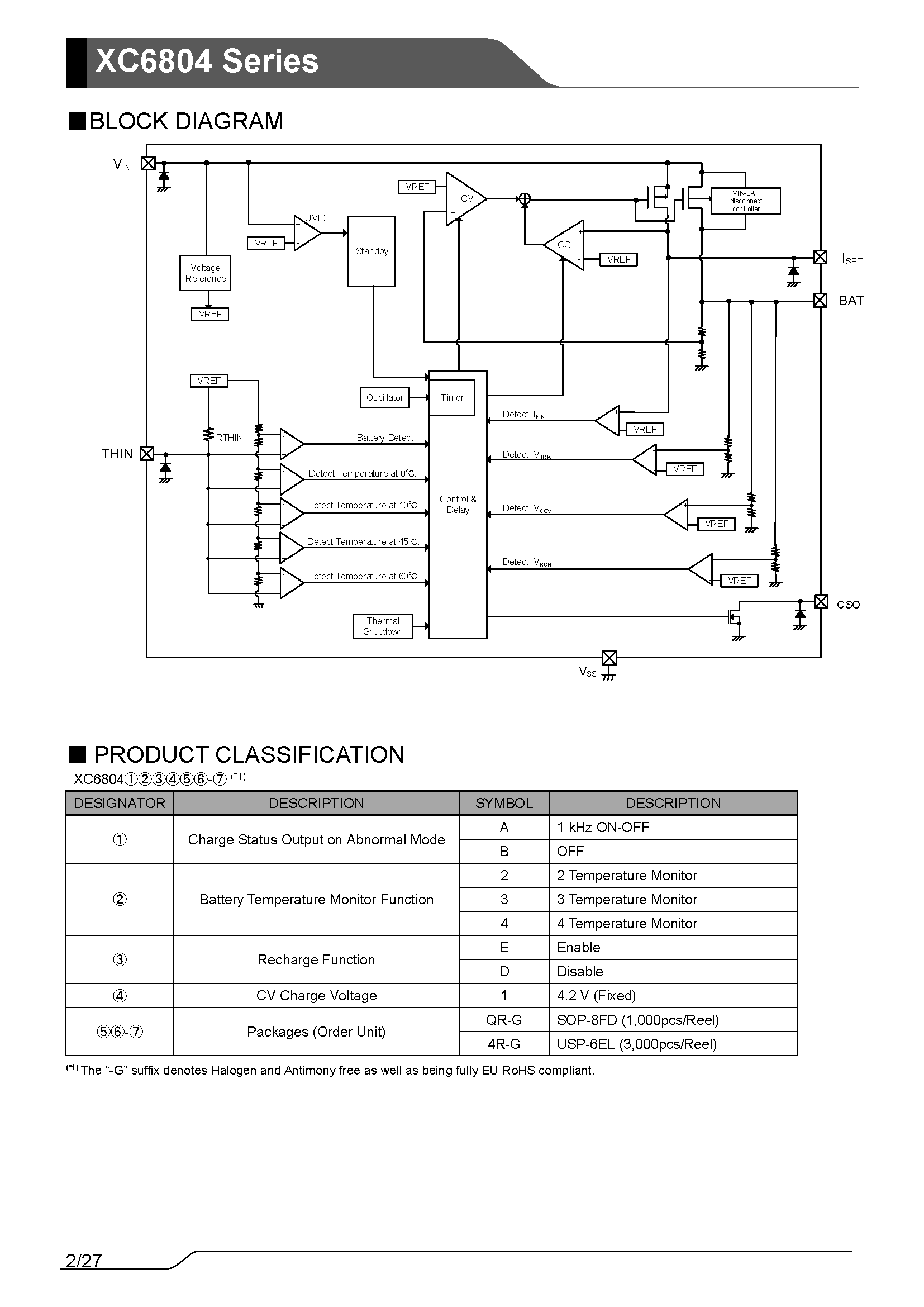

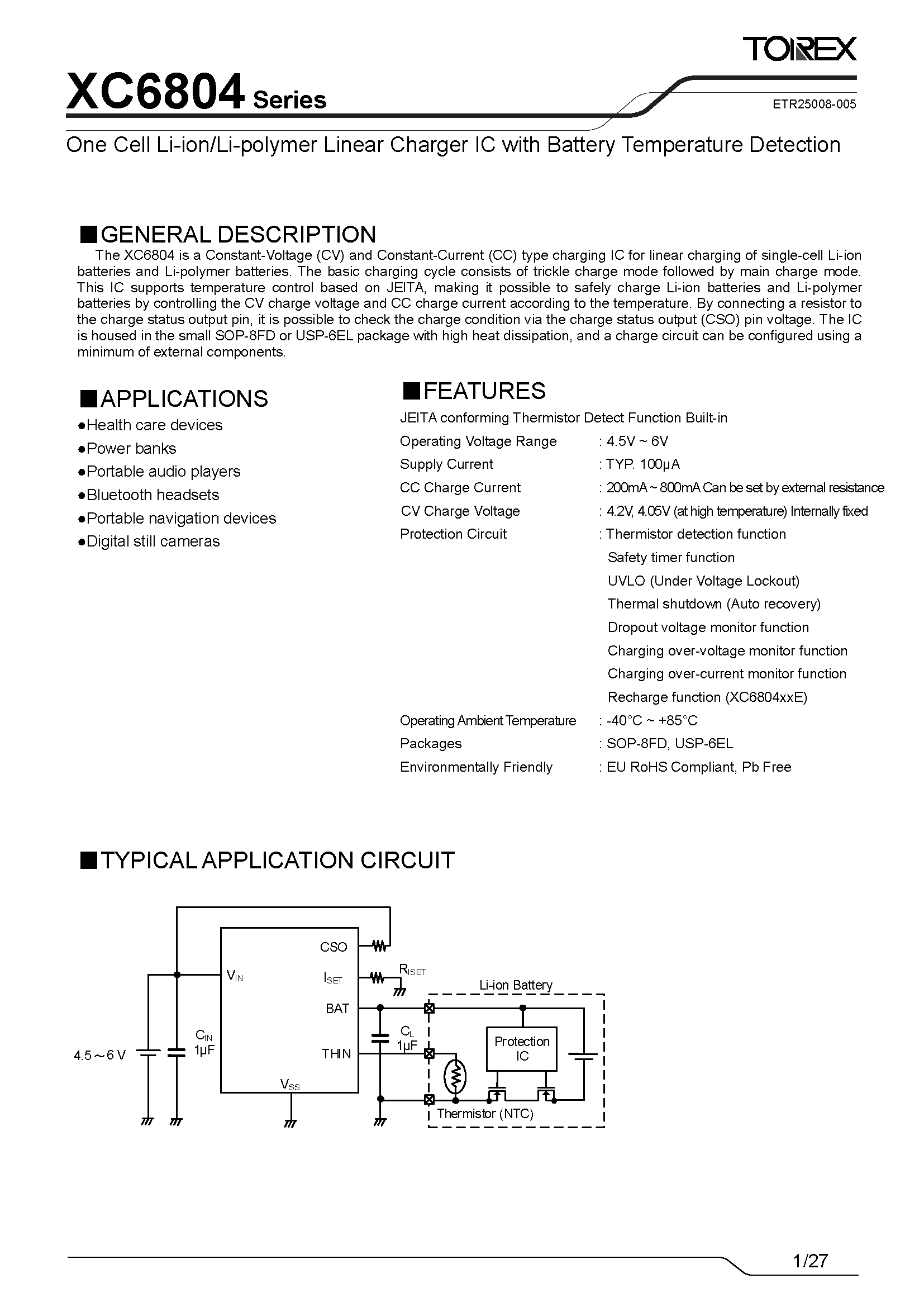

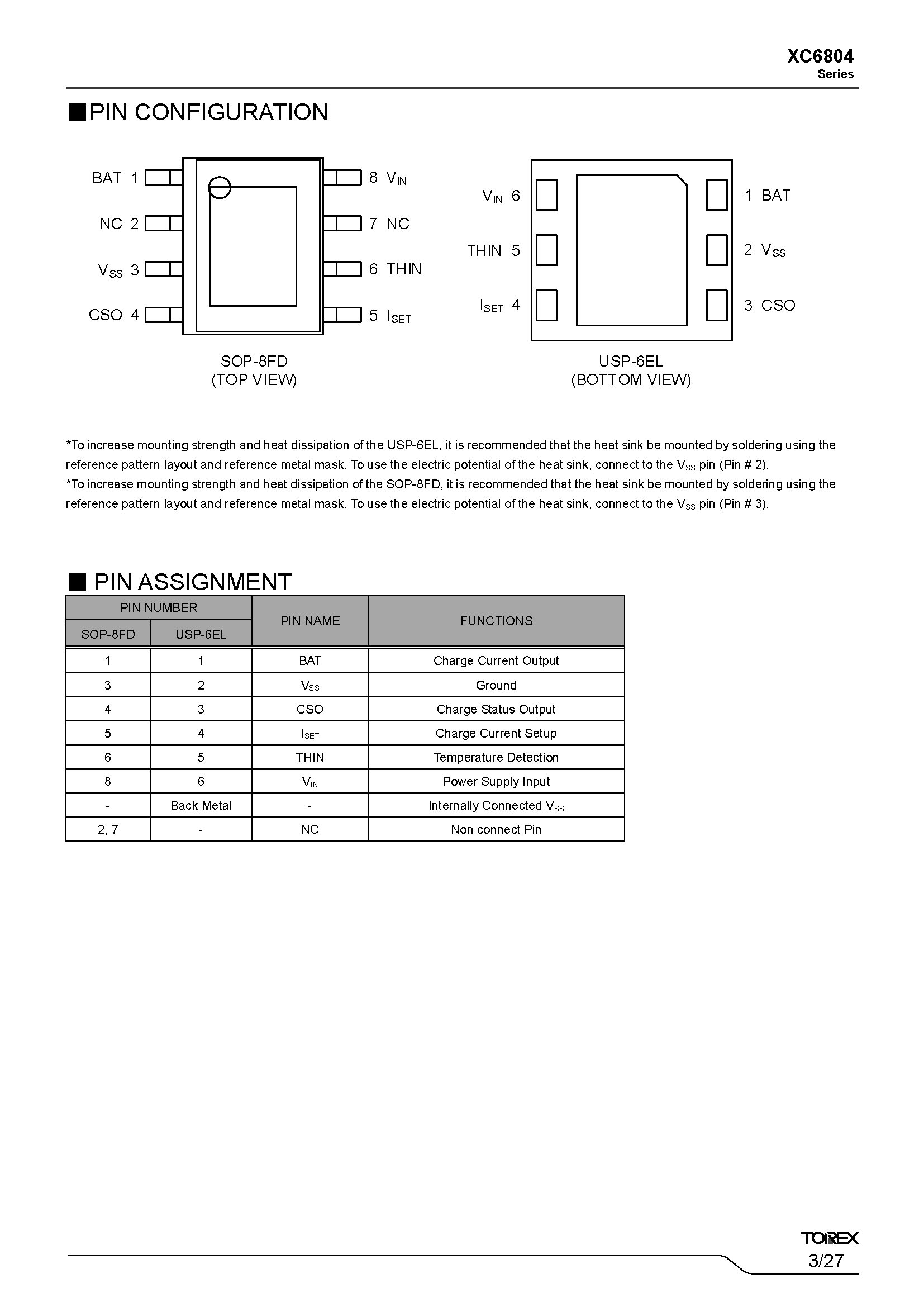

XC6804 Series One Cell Li-ion/Li-polymer Linear Charger IC with Battery Temperature Detection

GENERAL DESCRIPTION

The XC6804 is a Constant-Voltage (CV) and Constant-Current (CC) type charging IC for linear charging of single-cell Li-ion batteries and Li-polymer batteries. The basic charging cycle consists of trickle charge mode followed by main charge mode.This IC supports temperature control based on JEITA, making it possible to safely charge Li-ion batteries and Li-polymer batteries by controlling the CV charge voltage and CC charge current according to the temperature. By connecting a resistor to the charge status output pin, it is possible to check the charge condition via the charge status output (CSO) pin voltage. The IC is housed in the small SOP-8FD or USP-6EL package with high heat dissipation, and a charge circuit can be configured using a minimum of external components.

APPLICATIONS
  • Health care devices
  • Power banks
  • Portable audio players
  • Bluetooth headsets
  • Portable navigation devices
  • Digital still cameras
XC6804系列 具有電池溫度檢測功能的單節鋰離子/鋰聚合物線性充電器IC​

一般說明
XC6804是恆壓（CV）和恆流（CC）型充電IC，用於對單節鋰離子電池和鋰聚合物電池進行線性充電。基本充電週期由of流充電模式和主充電模式組成，該IC支持基於JEITA的溫度控制，可通過根據CV充電電壓和CC充電電流控制鋰離子電池和鋰聚合物電池安全充電溫度。通過在充電狀態輸出引腳上連接一個電阻，可以通過充電狀態輸出（CSO）引腳電壓檢查充電狀態。該IC封裝在具有高散熱性的小型SOP-8FD或USP-6EL封裝中，並且可以使用最少的外部組件來配置充電電路。​

應用領域
  • 保健設備
  • 移動電源
  • 便攜式音頻播放器
  • 藍牙耳機
  • 便攜式導航儀
  • 數碼相機​
