久尹股份有限公司JOYIN 自1984年起，久尹開始研發並製造品質可靠的電子元件及相關設備，
並以創新的設計技術在機械設備上增加良好的使用者介面，因此成為全球被動零件領域的知名設備製造商。

公司簡介
多年來，購買機械設備的客戶們強烈建議久尹代工被動元件，短短幾年內，久尹替全球製造業的領導者，
如Littelfuse、TYCO/Raychem和Ohizumi代工而擴大其業務範圍。2004年，久尹再次擴廠至中國蘇州，因此營業額開始有急速的成長。
基於經營規模的擴充，企業社會責任已成為久尹的主要重點之一，並被強調在所有的未來發展過程中。

久尹一直憑藉著誠實、負責與積極的心態去克服各項挑戰，讓團隊得以建立核心能力與價值。
久尹的團隊擁有機械設計技術、實際的全球性代工經驗、優質的概念以及與國際市場的交流及互動能力。
這些競爭優勢為久尹及其所有的合作夥伴提供了亮麗的未來，並能夠在多變的環境與市場下繼續保持領先地位。

產品資訊
壓敏電阻
負溫度係數熱敏電阻

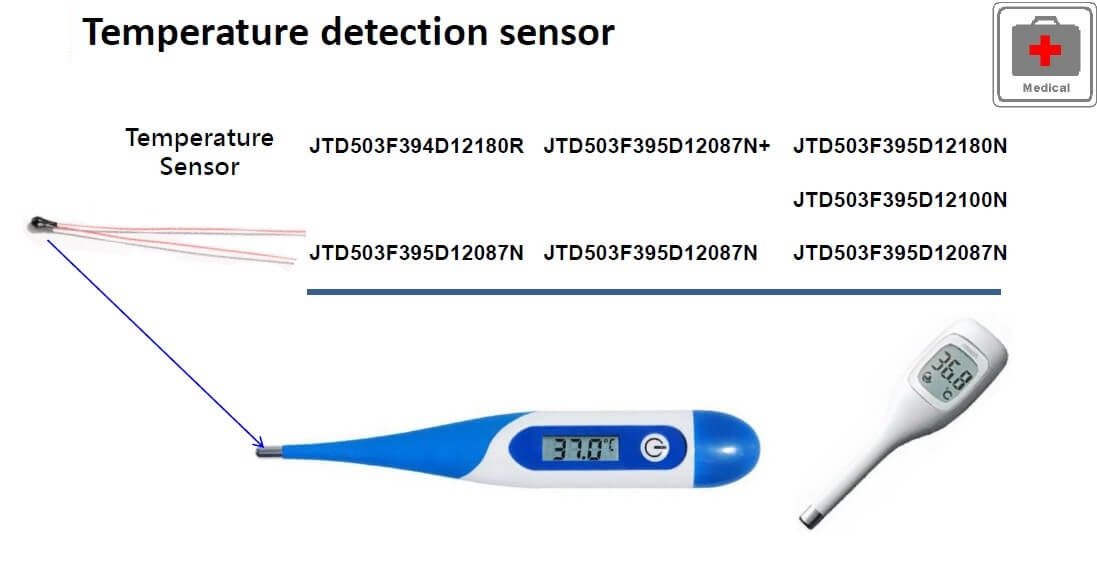

溫度傳感器
積層壓敏電阻
靜電保護器
壓電陶瓷元件
電子漿料




突波吸收器
Series		SPEC	Features

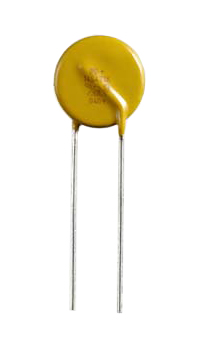

JVR Standard series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 85℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20/Ø25mm
JVR High Surge series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 85℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20mm
JVR Ultra Surge series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 85℃ Body size : Ø7/Ø10/Ø14/Ø20mm
JVZ Standard series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 105℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20mm/Ø25mm
JVZ High Surge series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 105℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20mm
JVZ Ultra Surge series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 105℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20mm

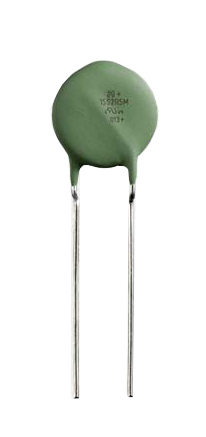

JVT Standard series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 125℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20/Ø25mm
JVT High Surge series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 125℃ Body size : Ø5/Ø7/Ø10/Ø14/Ø20mm
JVT Ultra Surge series			Safety Certification : UL/cUL , VDE , CQC Operating Temperature 125℃ Body size : Ø7/Ø10/Ø14/Ø20mm
負溫度係數熱敏電阻
Series		SPEC	Features
JNR series			NTC POWER Thermistor RoHS / Halogen-Free (HF) compliant Body size : Ø5mm ~ Ø25mm Highly stable electrical characteristics Coating material flame retardant to UL 94V-0 Wide resistance range Agency recognition : UL / TUV / CQC
積層壓敏電阻
Series		SPEC	Features

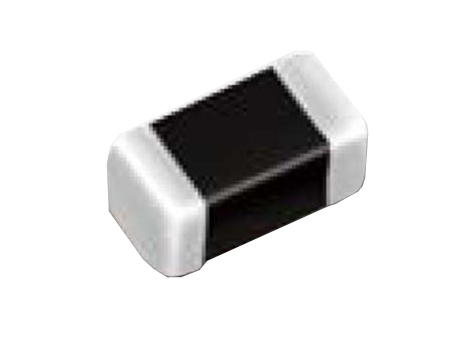

JMV-S series			SMD type zinic oxide based ceramic chip Quick response time (<1ns) High transient current capability Meet IEC 61000-4-2 standard Meet IEC 61000-4-5 standard Compact size for EIA 0201/0402/0603/0805/1206/1210/1812/2220
JMV-C series			Lead free type Quick response time (<1ns) Low clamping voltage Compact size for EIA 0402/0603
JMV-E series			Dual function for EMI and ESD Protection for IEC61000-4-2 Level 4 Fixed capacitance suitable for high-speed I/O port transient voltage protection Compact size for EIA 0402/0603
JMV-B series			SMD type zinic oxide based ceramic chip Lead free plating termination provided good solderability characteristic Insulator over coat keeps excellent low and stable leakage current Quick response time (<1ns) Low clamping voltage High transient current capability (Peak surge current : 1.5KA~4.5KA) High reliability Meet IEC 61000-4-5standard Compact size for EIA 2220
JMV-N series			RoHS compliant Meet IEC 61000-4-5 standard (Pass 10/700 µs 40Ω surge 4~8KV test) Insulator over coat keeps excellent low and stable leakage current Quick response time (<0.5ns) High transient current capability High reliability Compact size for EIA 1210
JMV-S AM series			Qualified based on AEC-Q200 RoHS compliant Meet IEC 61000-4-2 standard Meet IEC 61000-4-5 standard Quick response time (<0.5ns) High transient current capability High reliability Compact size for EIA 0402/0603/0805/1206
