圖片僅供參考
TJ9198GSF-3.3D SOT-23 3L HTC
| 附件下載 | |
| 商品名稱 | Low Noise LDO Regulator 低噪聲LDO穩壓器 |
| 訂購數量 | |
| 依數量訂價 | 12 NTD |
| FLYiNG 零件編號 | PITJ9198GSF33D |
| FLYiNG 庫存現貨 | 15 |
| 製造商 | TAEJIN Technology |
| 製造商零件編號 | TJ9198GSF-3.3D |
| 說明 | TJ9198GSF-3.3D SOT-23 3L HTC |
| 無鉛狀態 / RoHS 指令狀態 | RoHS / Halogen Free |
| 訂購數量 | NTD 單價 / PCS |
| 1~9 | 12 |
| 10~99 | 9 |
| 100~2999 | 6 |
| 3000~ | 3 |
| 封裝／外殼 | SOT-23 3L |
| 標準包裝數量 | 3000/REEL 捲軸 |

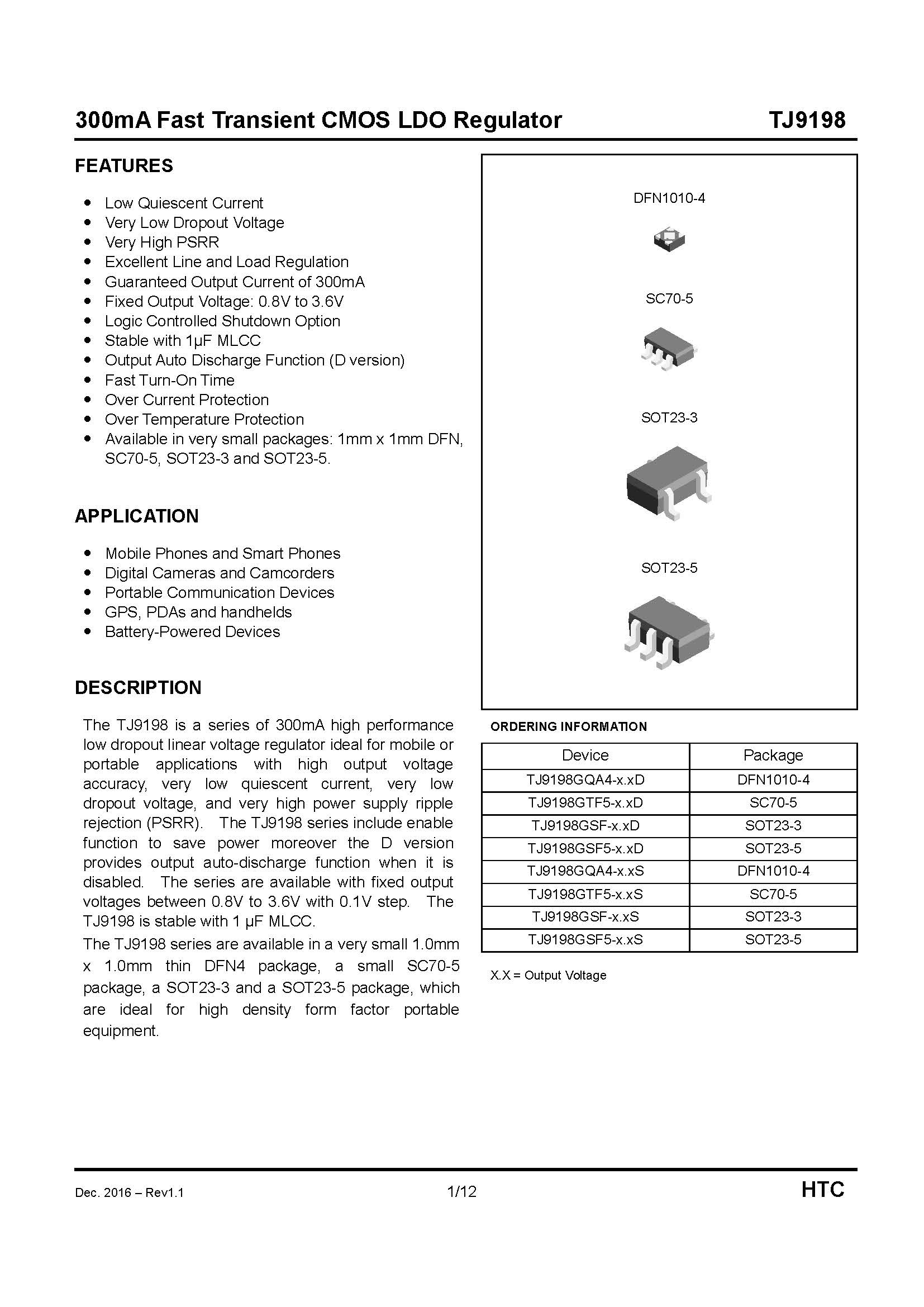

300mA Fast Transient CMOS LDO Regulator TJ9198
FEATURES
300mA快速瞬態CMOS LDO穩壓器 TJ9198
特徵
FEATURES
- Low Quiescent Current
- Very Low Dropout Voltage
- Very High PSRR
- Excellent Line and Load Regulation
- Guaranteed Output Current of 300mA
- Fixed Output Voltage: 0.8V to 3.6V
- Logic Controlled Shutdown Option
- Stable with 1μF MLCC
- Output Auto Discharge Function (D version)
- Fast Turn-On Time
- Over Current Protection
- Over Temperature Protection
- Available in very small packages: 1mm x 1mm DFN,SC70-5, SOT23-3 and SOT23-5.
- Mobile Phones and Smart Phones
- Digital Cameras and Camcorders
- Portable Communication Devices
- GPS, PDAs and handhelds
- Battery-Powered Devices
The TJ9198 is a series of 300mA high performance low dropout linear voltage regulator ideal for mobile or portable applications with high output voltage accuracy, very low quiescent current, very low dropout voltage, and very high power supply ripple rejection (PSRR). The TJ9198 series include enable function to save power moreover the D version provides output auto-discharge function when it is disabled. The series are available with fixed output voltages between 0.8V to 3.6V with 0.1V step. The TJ9198 is stable with 1 μF MLCC. The TJ9198 series are available in a very small 1.0mm x 1.0mm thin DFN4 package, a small SC70-5 package, a SOT23-3 and a SOT23-5 package, which are ideal for high density form factor portable equipment.
300mA快速瞬態CMOS LDO穩壓器 TJ9198
特徵
- 低靜態電流
- 極低的壓差
- 極高的PSRR
- 出色的線路和負載調節
- 保證300mA的輸出電流
- 固定輸出電壓：0.8V至3.6V
- 邏輯控制的關機選項
- 用1μFMLCC穩定
- 輸出自動放電功能（D版）
- 快速開啟時間
- 過流保護
- 過溫保護
- 採用非常小的封裝：1mm x 1mm DFN，SC70-5，SOT23-3和SOT23-5。
- 手機和智能手機
- 數碼相機和便攜式攝錄機
- 便攜式通訊設備
- GPS，PDA和手持設備
- 電池供電的設備
TJ9198是一系列300mA高性能低壓降線性穩壓器，非常適合具有高輸出電壓精度，非常低的靜態電流，非常低的壓降電壓和非常高的電源紋波抑制比（PSRR）的移動或便攜式應用。 TJ9198系列具有啟用功能以節省功率，此外，D版本在禁用時提供輸出自動放電功能。該系列可提供0.8V至3.6V的固定輸出電壓，步長為0.1V。 TJ9198在1 F的MLCC下是穩定的。 TJ9198系列採用1.0mm x 1.0mm薄型DFN4封裝，SC70-5小型封裝，SOT23-3和SOT23-5封裝，非常適合高密度外形便攜式設備。
