LINEAR IC LR1801G-1.2V-AA3-A-R SOT-223
| 附件下載 | |
| 商品名稱 | UTC Low Dropout Linear Regulator |
| 訂購數量 | |
| 依數量訂價 | NTD |
| FLYiNG 零件編號 | ICLR1801G1.2VAA3ARUTC |
| FLYiNG 散料庫存 | 5 |
| FLYiNG 標準包裝庫存 | 電洽/Contact |
| 製造商 | UTC |
| 製造商零件編號 | LR1801G-1.2V-AA3-A-R |
| 說明 | LINEAR IC LR1801G-1.2V-AA3-A-R SOT-223 |
| 無鉛狀態 / RoHS 指令狀態 | RoHS / Halogen Free |
| 電源管理 LDO | LINEAR INTEGRATED CIRCUIT |
| 製造商 | UTC |
| 系列 | LR1801 |
| 原廠料號 | LR1801G-1.2V-AA3-A-R |
| 輸入電壓VIN | 7V |
| 輸出電壓Vout | 1.2V |
| 功耗 | 內部受限 |
| 接面溫度 | 125°C |
| 封裝／外殼 | SOT-223 |
| 安裝類型 | 表面黏著式 SMD |
| 無鉛狀態 RoHS | RoHS / Halogen Free |
| 標準包裝數量 | 2500/REEL 捲軸 |

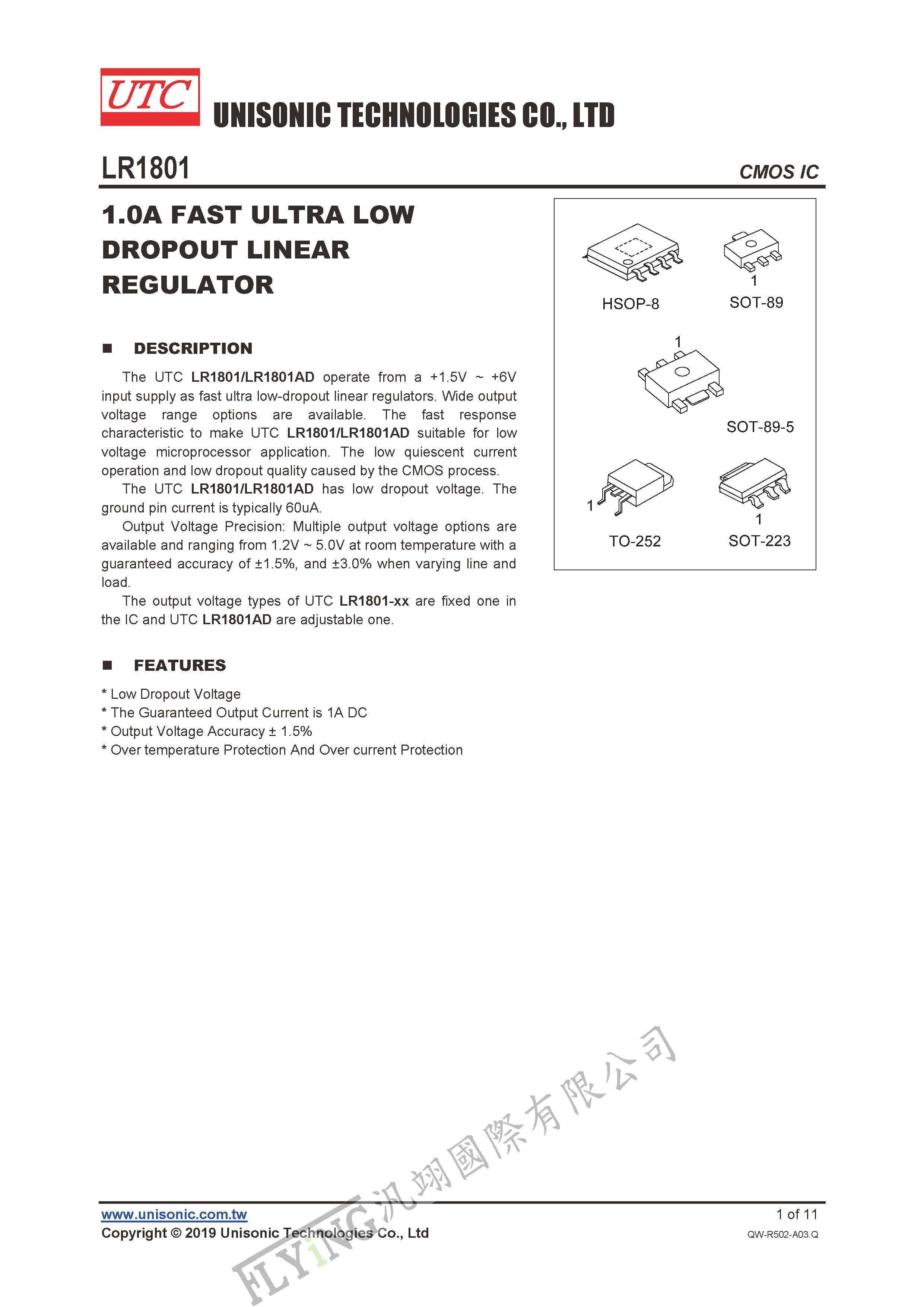

LR1801 CMOS IC
1.0A FAST ULTRA LOW DROPOUT LINEAR REGULATOR
DESCRIPTION
The UTC LR1801/LR1801AD operate from a +1.5V ~ +6V input supply as fast ultra low-dropout linear regulators. Wide output voltage range options are available. The fast response characteristic to make UTC LR1801/LR1801AD suitable for low voltage microprocessor application. The low quiescent current operation and low dropout quality caused by the CMOS process.
The UTC LR1801/LR1801AD has low dropout voltage. The ground pin current is typically 60uA.
Output Voltage Precision: Multiple output voltage options are available and ranging from 1.2V ~ 5.0V at room temperature with a guaranteed accuracy of ±1.5%, and ±3.0% when varying line and
load.
The output voltage types of UTC LR1801-xx are fixed one in the IC and UTC LR1801AD are adjustable one.
LR1801 CMOS集成電路
1.0A 快速超低壓差線性穩壓器
描述
UTC LR1801/LR1801AD 採用 +1.5V ~ +6V 輸入電源作為快速超低壓差線性穩壓器工作。 提供寬輸出電壓範圍選項。 快速響應特性使 UTC LR1801/LR1801AD 適用於低壓微處理器應用。 CMOS 工藝導致的低靜態電流操作和低壓差質量。
UTC LR1801/LR1801AD 具有低壓差電壓。 接地引腳電流通常為 60uA。
輸出電壓精度：提供多種輸出電壓選項，範圍為室溫下的 1.2V ~ 5.0V，保證精度為 ±1.5%，在改變線路和電壓時保證精度為 ±3.0%
加載。
UTC LR1801-xx的輸出電壓類型是IC中固定的一種，UTC LR1801AD是可調的一種。
特徵
1.0A FAST ULTRA LOW DROPOUT LINEAR REGULATOR
DESCRIPTION
The UTC LR1801/LR1801AD operate from a +1.5V ~ +6V input supply as fast ultra low-dropout linear regulators. Wide output voltage range options are available. The fast response characteristic to make UTC LR1801/LR1801AD suitable for low voltage microprocessor application. The low quiescent current operation and low dropout quality caused by the CMOS process.
The UTC LR1801/LR1801AD has low dropout voltage. The ground pin current is typically 60uA.
Output Voltage Precision: Multiple output voltage options are available and ranging from 1.2V ~ 5.0V at room temperature with a guaranteed accuracy of ±1.5%, and ±3.0% when varying line and
load.
The output voltage types of UTC LR1801-xx are fixed one in the IC and UTC LR1801AD are adjustable one.
FEATURES
- Low Dropout Voltage
- The Guaranteed Output Current is 1A DC
- Output Voltage Accuracy ± 1.5%
- Over temperature Protection And Over current Protection
LR1801 CMOS集成電路
1.0A 快速超低壓差線性穩壓器
描述
UTC LR1801/LR1801AD 採用 +1.5V ~ +6V 輸入電源作為快速超低壓差線性穩壓器工作。 提供寬輸出電壓範圍選項。 快速響應特性使 UTC LR1801/LR1801AD 適用於低壓微處理器應用。 CMOS 工藝導致的低靜態電流操作和低壓差質量。
UTC LR1801/LR1801AD 具有低壓差電壓。 接地引腳電流通常為 60uA。
輸出電壓精度：提供多種輸出電壓選項，範圍為室溫下的 1.2V ~ 5.0V，保證精度為 ±1.5%，在改變線路和電壓時保證精度為 ±3.0%
加載。
UTC LR1801-xx的輸出電壓類型是IC中固定的一種，UTC LR1801AD是可調的一種。
特徵
- 低壓差電壓
- 保證輸出電流為 1A DC
- 輸出電壓精度 ± 1.5%
- 過溫保護和過流保護
