絕緣柵雙極晶體管	Insulated Gate Bipolar Transistor
Features	出色的SCIS能力   邏輯電平門驅動器
封裝／外殼	TO-252
安裝類型	表面黏著式 SMD
標準包裝數量	2500/REEL 捲軸

UGV3040
Insulated Gate Bipolar Transistor

300mJ, 400V N-CHANNEL
IGNITION  IGBT

DESCRIPTION
The UTC UGV3040 is an N-channel ignition Insulated Gate
Bipolar Transistor. It uses UTC’s advanced technology to provide
customers with outstanding SCIS capability.
The UTC UGV3040 is suitable for Coil –On plug applications and
Automotive Ignition Coil driver circuits, etc.

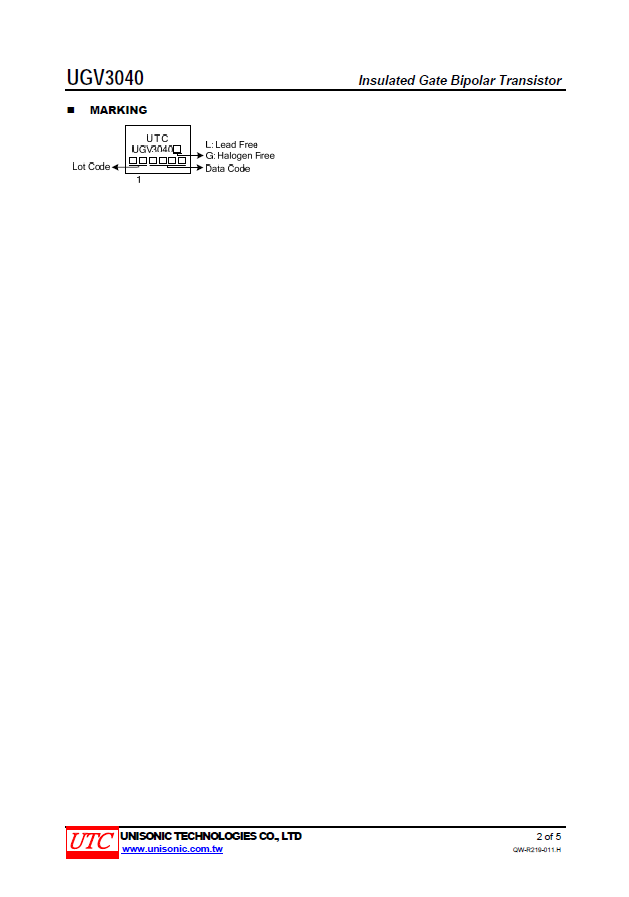

FEATURES
 Outstanding SCIS capability
 Logic level gate drive
-----------------------------------------------------
UGV3040
絕緣柵雙極晶體管

300mJ，400V N-CHANNEL
點火IGBT

描述
UTC UGV3040是一款N通道點火絕緣門
雙極晶體管。 它使用UTC的先進技術提供
具有出色SCIS能力的客戶。
UTC UGV3040適用於Coil -On插頭應用和
汽車點火線圈驅動電路等

特徵
  出色的SCIS能力
  邏輯電平門驅動器




	VCER	VGES	IC	VCE(Sat)			VGE(th)
Part No.	(V)	(V)	(A)	(V) (Max)	IC (A)	VGE (V)	(V) (Min)	(V) (Max)	Package
UG15N41	410	15	15.0	1.8	6	4	1.2	1.7	TO-263
UG15N41	410	15	15.0	1.8	6	4	1.2	1.7	TO-252
UG15N41	410	15	15.0	1.8	6	4	1.2	1.7	TO-220
UGV3040	450	±30	17.0	1.6	6	4	1.3	2.2	TO-252
UGV3040	450	±30	17.0	1.6	6	4	1.3	2.2	TO-263
UGV3040	450	±30	17.0	1.6	6	4	1.3	2.2	TO-220
UGV3040	450	±30	17.0	1.6	6	4	1.3	2.2	TO-220F
UGP7N60	600	±20	14.0	2.7	7	15	4.5	7.2	TO-252
UGP7N60	600	±20	14.0	2.7	7	15	4.5	7.2	TO-220
UGP7N60	600	±20	14.0	2.7	7	15	4.5	7.2	TO-220F
UG1N120	1200	±20	5.3	2.9	1	15	6.0	-	TO-220
UG5N120	1200	±20	10.0	2.7	5	15	6.0	-	TO-220
UG5N120	1200	±20	10.0	2.7	5	15	6.0	-	TO-247
UG10N120	1200	±20	17.0	2.7	10	15	6.0	-	TO-220
UG25N120	1200	±20	25.0	2.5	20	15	3.5	7.5	TO-220
UG25N120	1200	±20	25.0	2.5	20	15	3.5	7.5	TO-3P
UG25N120	1200	±20	25.0	2.5	20	15	3.5	7.5	TO-3PN
UG25N120	1200	±20	25.0	2.5	20	15	3.5	7.5	TO-247
UG11N120	1200	±20	43.0	2.4	11	15	5.0	-	TO-247

製造商 : 友順科技
